SK025M-020-SL-S6 - Datasheet
MBA
Category Information

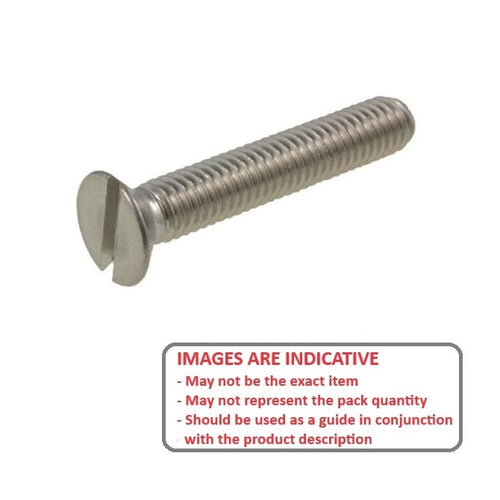

Screws - Countersunk - Slotted - 316 Stainless316 Stainless Slotted Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : M2.5 (2.5x0.45mm)
- Overall Length (L)
20
mm
(Equiv. 0.787 in.) - Material 316 Stainless
- Max Head Diameter 4.70 mm
- Max Head Height 1.50 mm
- Type Countersunk / Slotted
- Pitch 0.450 mm
- Threads Per Inch 56.44 TPI
- Material Stainless Steel 316 (Similar to A4, 18-10)
