Miniature Bearings Australia
SK025M-012-PZ-CZ - Datasheet
MBA
Category Information
Screws - Countersunk - Pozidrive - SteelSteel Pozidrive Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data

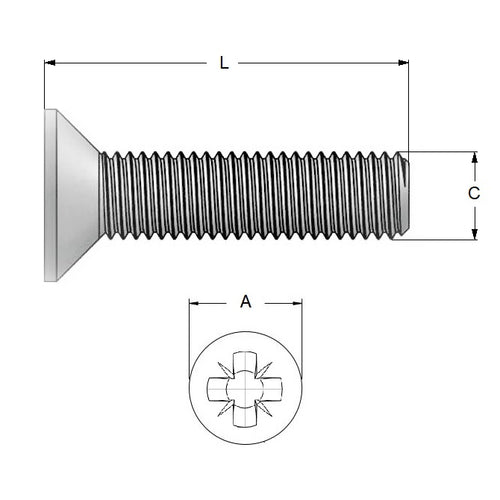

- Thread Size (C) : M2.5 (2.5x0.45mm)
- Overall Length (L)
12
mm
(Equiv. 0.472 in.) - Material Zinc Plated
- Max Head Diameter 5.0 mm
- Max Head Height 1.5 mm
- Type Countersunk / Pozidrive
- Pitch 0.450 mm
- Threads Per Inch 56.44 TPI
- Material Steel Zinc Plated
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Hitech MSC-ZZP2512
- MSCZZP2512
