SK025M-010-PH-CZ - Datasheet
MBA
Category Information

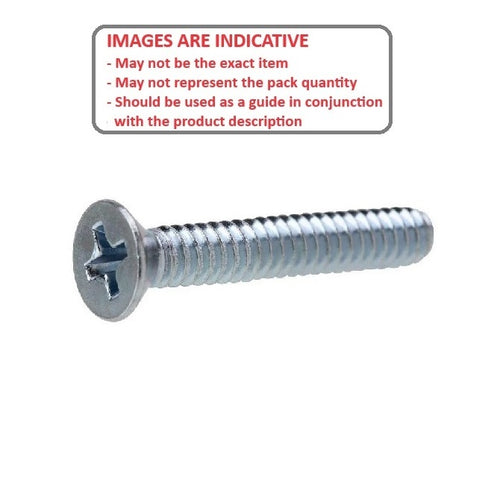

Screws - Countersunk - Phillips - SteelSteel Phillips Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
- Thread Size (C) : M2.5 (2.5x0.45mm)
- Overall Length (L)
10
mm
(Equiv. 0.394 in.) - Material Zinc Plated
- Max Head Diameter (A) 4.70 mm
- Max Head Height 1.5 mm
- Type Countersunk / Philips
- Pitch 0.450 mm
- Threads Per Inch 56.44 TPI
- Quantity Per Box 200
- Material Steel Zinc Plated
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 91420A020
- Hitech MSCPZP2510
