PLBT-160M-240-S3LK-098 - Datasheet
MBA
Category Information

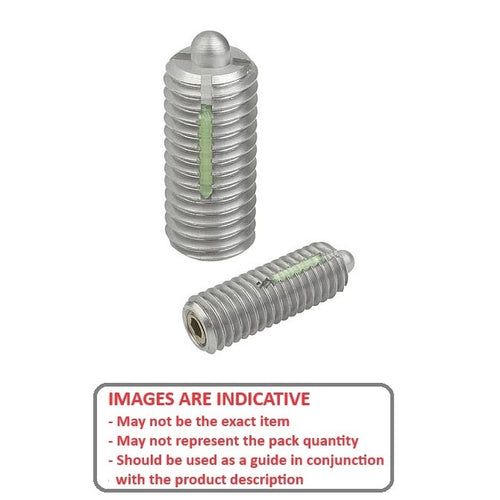

Plungers - Ball Threaded - Stainless Body and Ball with ThreadlockStainless Body and Ball with Threadlock Ball Threaded Plungers. With Long-Lok thread locking compound to prevent loosening
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (D) : M16 (16x2mm)
- Body Length (L)
24.0
mm
(Equiv. 0.945 in.) - Initial Pressure (F1) 29.4 N
- Final Pressure (F2) 98.0 N
- Ball Diameter (D1) 10.0 mm
- Ball Height (H) 3.5 mm
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- BPM16SSLOK
- BPM16SS-LOK
- BPM16SS/LOK
- PLBT160240S3LK125
