PLBT-160M-240-S3-098 - Datasheet

MBA

Category Information

Plungers - Ball Threaded - Stainless Body - Stainless Ball

Stainless Ball Stainless Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

    Product Data

    • Thread Size (D) : M16 (16x2mm)
    • Body Length (L) 24.0 mm
      (Equiv. 0.945 in.)
    • Initial Pressure (F1) 29.4 N
    • Final Pressure (F2) 98.0 N
    • Ball Diameter (D1) 10.0 mm
    • Ball Height (H) 3.5 mm
    • Drive Slotted
    • Material Stainless Steel 303 (Similar to A2, 304, 18-8)
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

    Cross References

    • 85015A34
    • Elesa GN615-M16-KN
    • GN615M16KN
    • BPM16SS
    • KBP-202
    • KBP202
    • PLBT160240S3125
    View full details

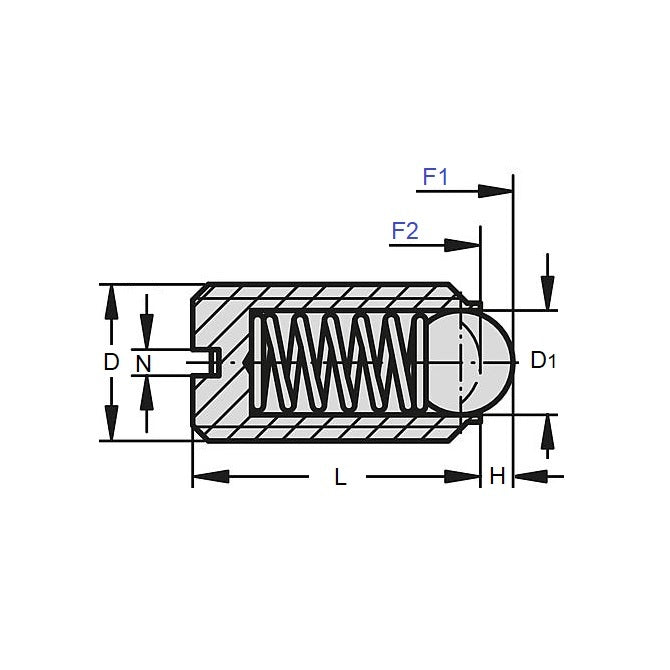

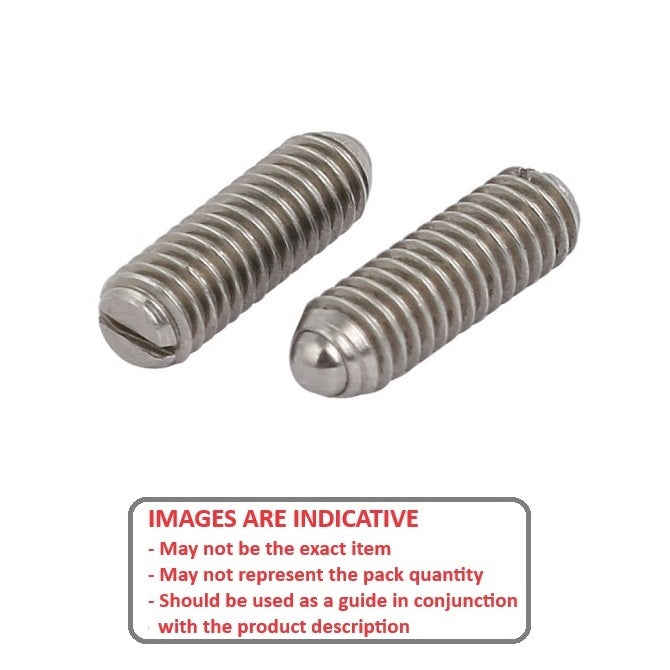

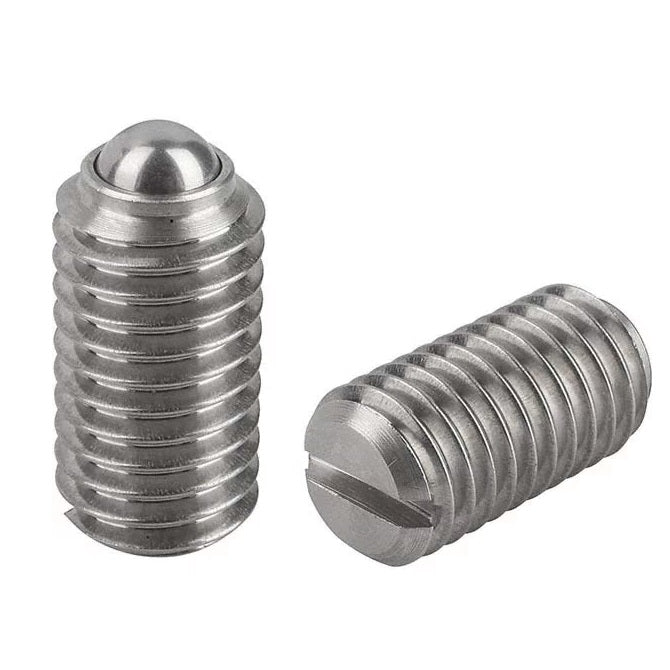

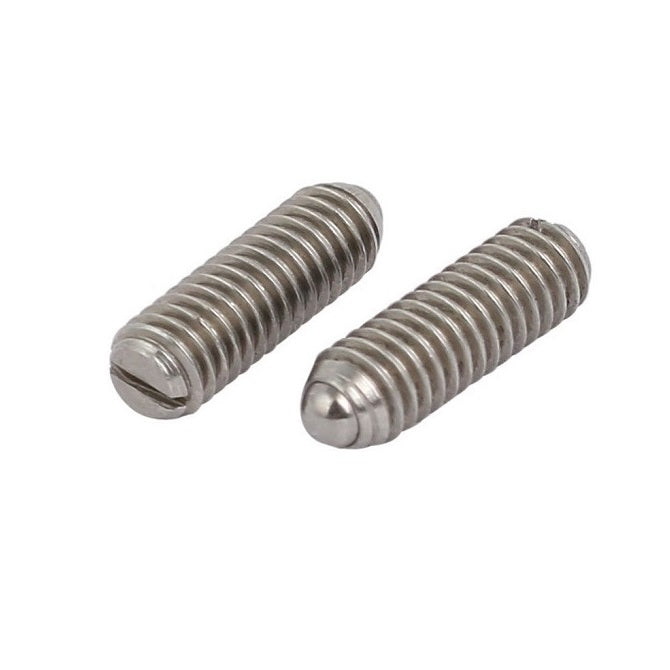

    PLBT-160M-240-S3-098DiagramPLBT-160M-240-S3-098Image
