PLST-160M-320-C-100 - Datasheet

MBA

Category Information

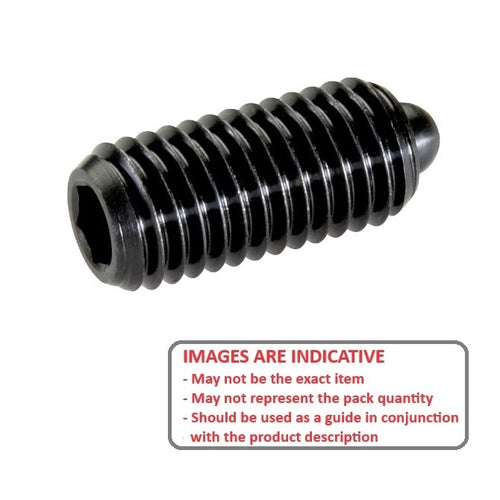

Plungers - Spring - No Handle - Steel - Standard Nose

Standard Nose Steel No Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

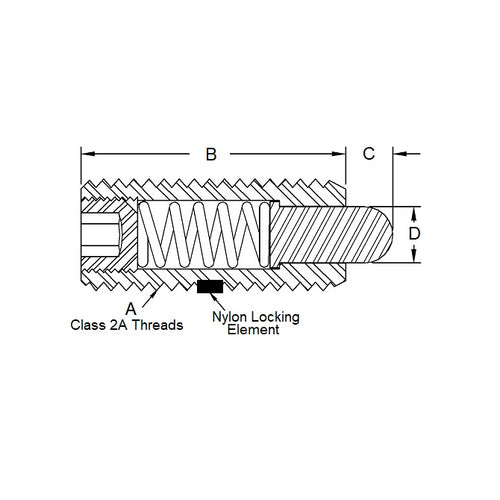

  • Thread Size (A) : M16 (16x2mm)
  • Thread Length (B) 25.0 mm
    (Equiv. 0.984 in.)
  • Initial Pressure (F1) 100.0 N
  • Final Pressure (F2) 32.00 N
  • Tip Diameter (D) 5.00 mm
  • Tip Length 7.50 mm
  • Body Length (B) 45.0 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • PLST160320C100
