SS160M-0283-CS-RB - Datasheet
MBA
Category Information

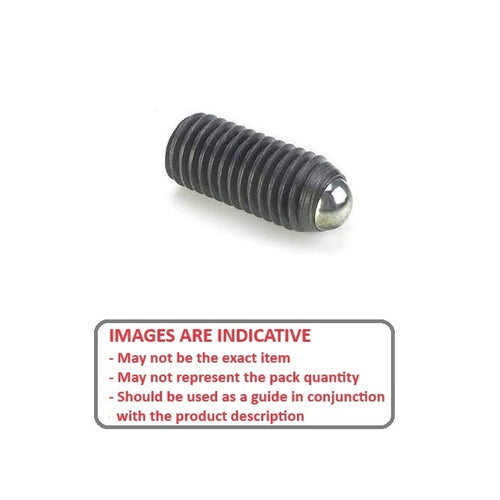

Socket Set Screws - Rolling Ball Tip - Carbon SteelCarbon Steel Rolling Ball Tip Socket Set Screws. Rolling ball tip for locating into a hole
- Rolling ball set screws are not designed to bear heavy loads.
- Used to lightly fasten fragile work pieces.
- We would recommend testing if you plan to use them in a load bearing application
- Ball materials include carbon steel, brass, Polyacetal or 440C Stainless Steel
Product Data
- Thread Size : M16 (16x2mm)
- Thread Length (L)
24.3
mm
(Equiv. 0.957 in.) - Type Rolling Ball Tip
- Overall Length (L) 28.3 mm
- Ball Diameter (D) 12.0 mm
- Hex Key Size 8.0
- Body Material Carbon Steel
- Ball Material Carbon Steel HRC 55-60
- Pitch 2.0 mm
- Threads Per Inch 12.7 TPI
- Finish Black Oxide
- Material Carbon Steel with Carbon Steel HRC 55-60 tip
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 93339A260
- S705CBM1628
