PLST-160-254-HKASLLK-045 - Datasheet
MBA
Category Information

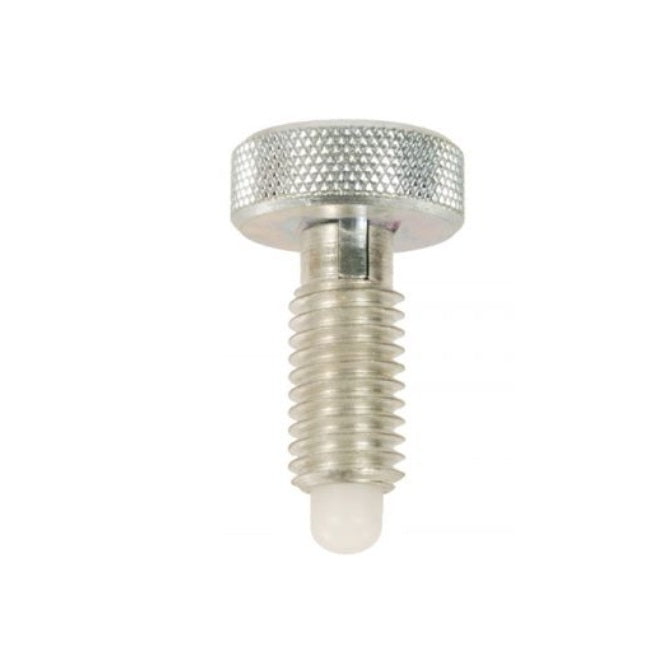

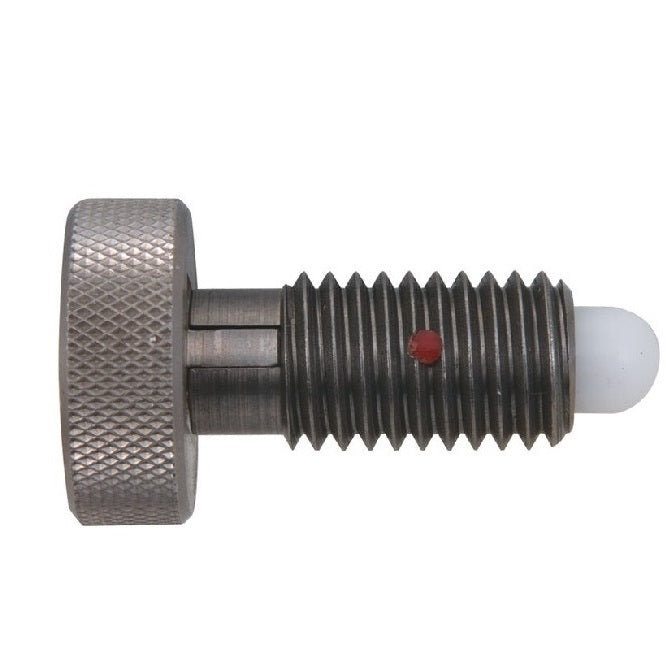

Plungers - Spring - Knurled Handle - Locking - Stainless-AcetalStainless-Acetal Locking Knurled Handle Spring Plungers. Steel body with acetal nose
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data

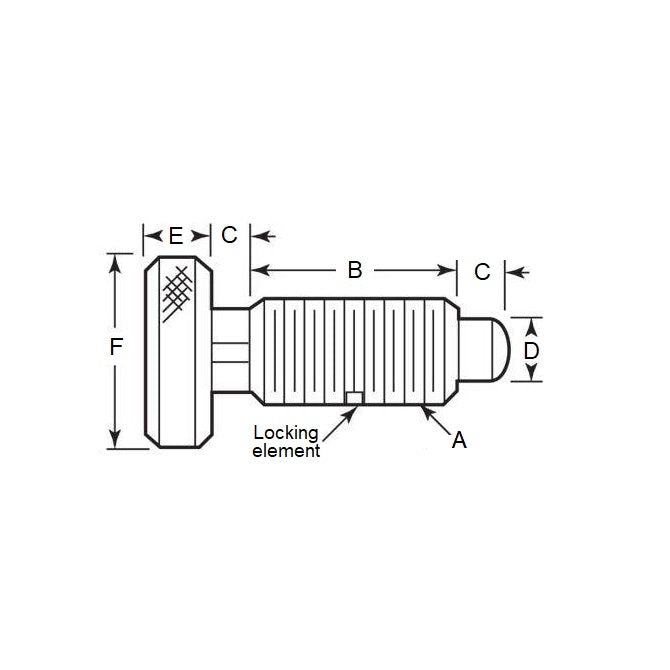

- Thread Size (A) : M16 (16x2mm)
- Thread Length (B)
25.4
mm
(Equiv. 1 in.) - Initial Pressure (F1) 22.0 N
- Final Pressure (F2) 44.5 N
- Tip Diameter (D) 9.5 mm
- Tip Length (C) 7.9 mm
- Head Height (E) 10.3 mm
- Head Diameter (F) 28.6 mm
- Additional With Locking Element
- Material Stainless Steel Body with Acetal
Product Compliance and Data
Additional Resources
Cross References
- NKPM10N
- NKPM-10N
