SS160M-0300-AS-DP - Datasheet
MBA
Category Information

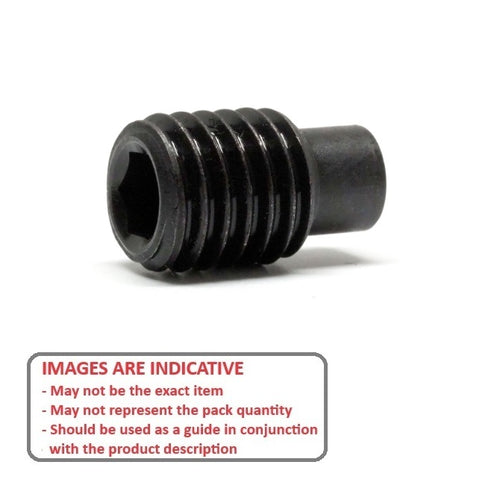

Socket Set Screws - Dog Point Carbon SteelDog Point Carbon Steel Socket Set Screws. Dog point grub screws
- Socket drive grub screws with a dog point tip.
- Set screw with a cylindrical, unthreaded "dog" tip that fits into a pre-drilled hole, slot, or milled flat in a second part to permanently locate and secure two components together.
- Commonly used in machinery to prevent movement, such as locking a gear onto a shaft.
Product Data

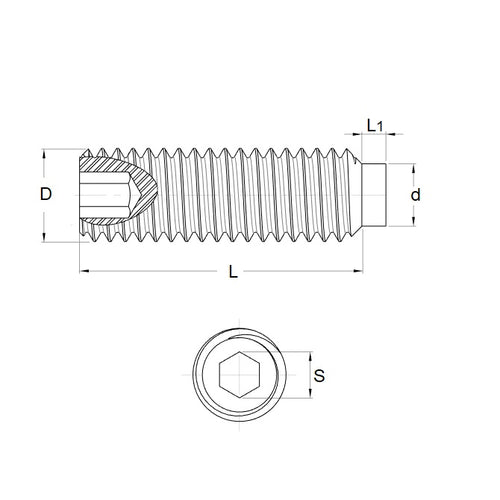

- Thread Size : M16 (16x2mm)
- Thread Length (L)
21.6
mm
(Equiv. 0.85 in.) - Type Dog Point
- Overall Length (L + L1) 30.0 mm
- Tip Diameter (d) 11.6 - 12.0 mm
- Tip Length (L1) 8.0 - 8.4 mm
- Hex Key Size 8.00
- Pitch 2.000 mm
- Threads Per Inch 12.7 TPI
- Material Carbon Steel
