SC160M-470-C-SK-BO - Datasheet
MBA
Category Information

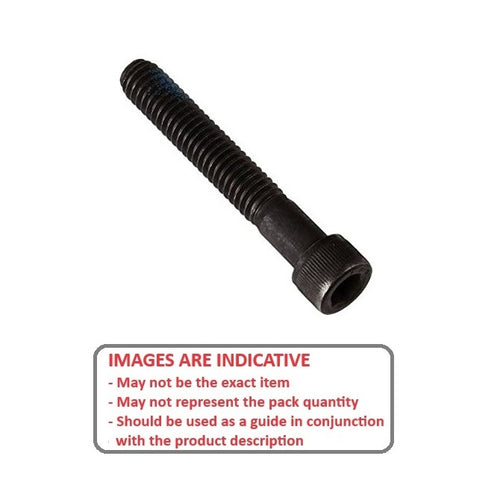

Screws - Socket Cap - Alloy Steel - Black OxideBlack Oxide Alloy Steel Socket Cap Screws. UNC - UNF - METRIC - Alloy Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.

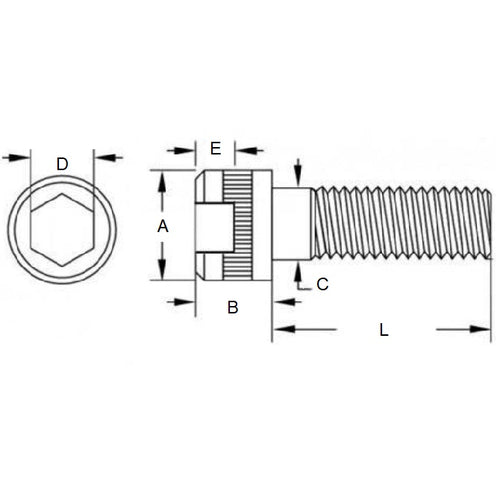

Product Data
- Thread Size (C) : M16 (16x2mm)
- Thread Length (L)
470
mm
(Equiv. 18.504 in.) - Material Black Oxide Carbon Steel 12.9
- Head Length (B Max.) 16 mm
- Head Diameter (A Max.) 24 mm
- Drive Depth (E) 8 mm
- Shank Diameter (C) 15.73 - 16.00 mm
- Hex Key (D) 14.00 mm
- Pitch 2.00 mm
- Threads Per Inch 12.700 TPI
- Min thread Length 44.00 mm
- Material High Tensile Steel Black Oxide
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi CSH-ST-M16-470
- CSHSTM16470
