PLBT-160M-250-CS-110 - Datasheet

MBA

Category Information

Plungers - Ball Threaded - Steel Body - Stainless Ball

Stainless Ball Steel Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

    Product Data

    • Thread Size (D) : M16 (16x2mm)
    • Body Length (L) 25.0 mm
      (Equiv. 0.984 in.)
    • Initial Pressure (F1) 30.00 N
    • Final Pressure (F2) 110.00 N
    • Ball Diameter (D1) 10.00 mm
    • Ball Height (H) 3.30 mm
    • 304 Stainless
    • Body Material Alloy Steel
    • Drive 8.0mm Hex
    • Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
    Country of Origin: JP

    Product Compliance and Data

    Additional Resources

    Cross References

    • Misumi C-BPW16-10P
    • CBPW1610P
    View full details

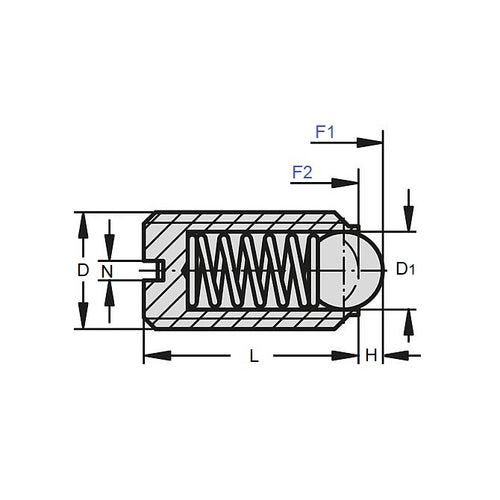

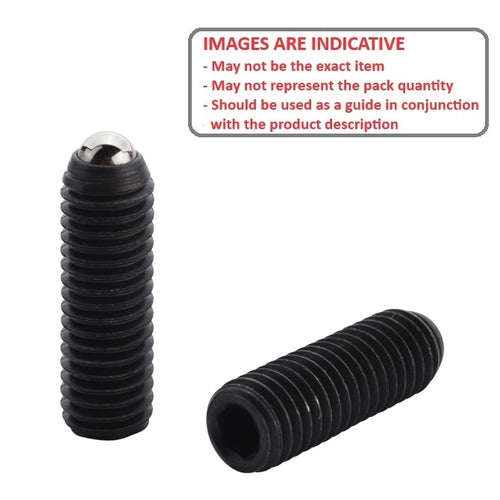

    PLBT-160M-250-CS-110DiagramPLBT-160M-250-CS-110Image
