Category Information

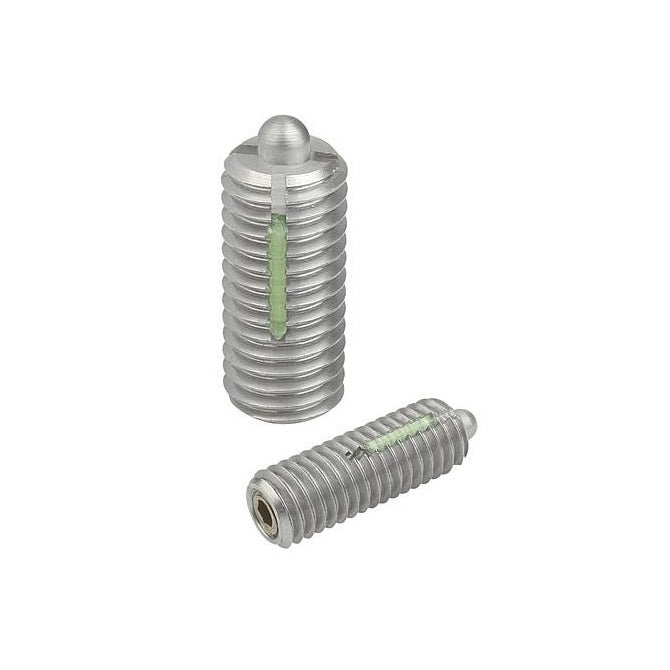

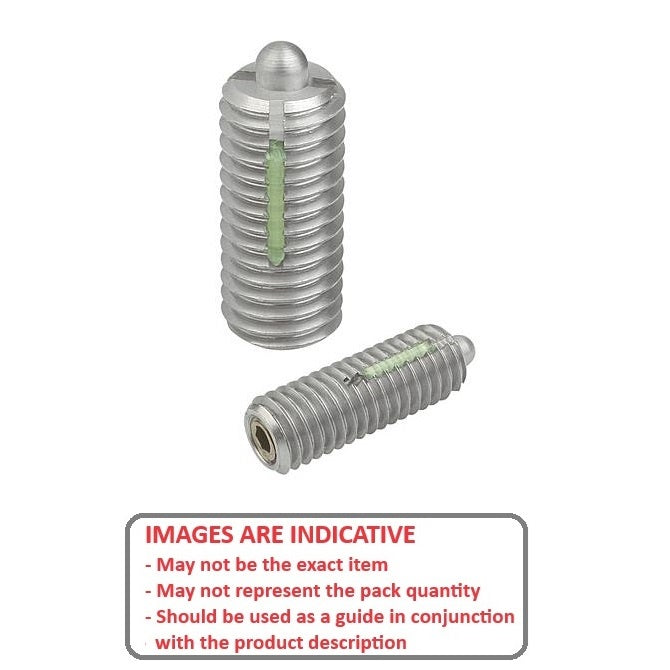

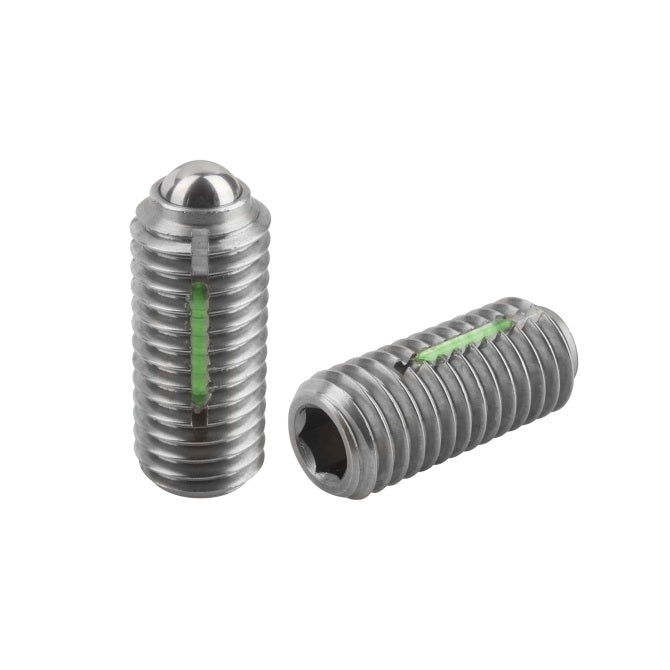

Plungers - Ball Threaded - Steel Body and Ball with ThreadlockSteel Body and Ball with Threadlock Ball Threaded Plungers. With Long-Lok thread locking compound to prevent loosening
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (D) : M12 (12x1.75mm)
- Body Length (L)
22.0
mm
(Equiv. 0.866 in.) - Initial Pressure (F1) 19.6 N
- Final Pressure (F2) 55.0 N
- Ball Diameter (D1) 8.0 mm
- Ball Height (H) 2.5 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- BPM12LOK
- BPM12-LOK
- BPM12/LOK
- KBP-193
- KBP193
- PLBT120220CLK055
