PLBT-120M-220-S3LK-055 - Datasheet
MBA
Category Information

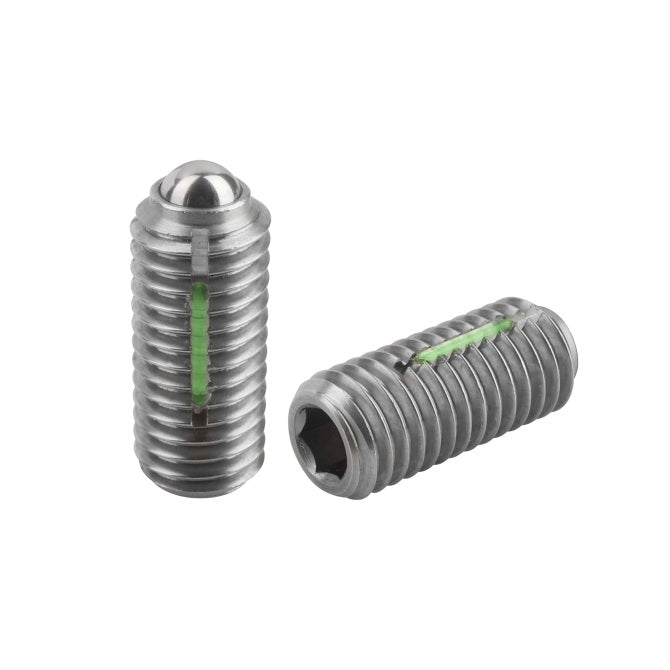

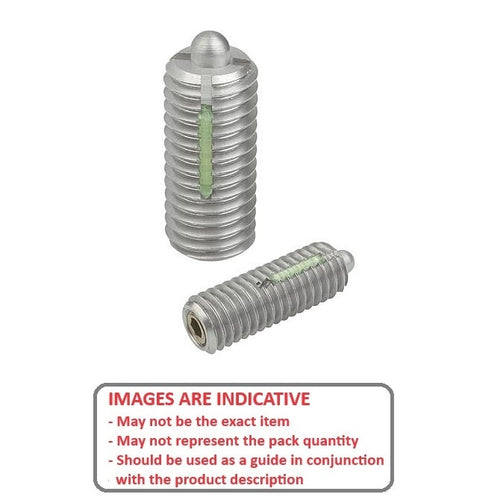

Plungers - Ball Threaded - Stainless Body and Ball with ThreadlockStainless Body and Ball with Threadlock Ball Threaded Plungers. With Long-Lok thread locking compound to prevent loosening
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : M12 (12x1.75mm)
- Body Length (L)
22.0
mm
(Equiv. 0.866 in.) - Initial Pressure (F1) 30.0 N
- Final Pressure (F2) 55.0 N
- Ball Diameter (D1) 8.0 mm
- Ball Height (H) 2.5 mm
- Drive 2mm Slotted Drive
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- BPM12SS-LOK
- BPM12SSLOK
- KBP-201
- KBP201
- PLBT120220S3LK055
