SK120M-050-SL-CZ - Datasheet

MBA

Category Information

Screws - Countersunk - Slotted - Steel

Steel Slotted Countersunk Screws. Flat Head Countersunk UNC - UNF - BA - METRIC

  • An expanded range may be available on special order. Please enquire.
  • Nuts sold seperately - See Nuts.

Product Data

  • Thread Size (C) : M12 (12x1.75mm)
  • Overall Length (L) 50 mm
    (Equiv. 1.969 in.)
  • Material Zinc Plated Steel
  • Max Head Diameter 24.0 mm
  • Max Head Height 6.5 mm
  • Type Countersunk / Slotted
  • Pitch 1.750 mm
  • Threads Per Inch 14.51 TPI
  • Material Zinc Plated Steel
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • Hitech MSCSZP1250
View full details

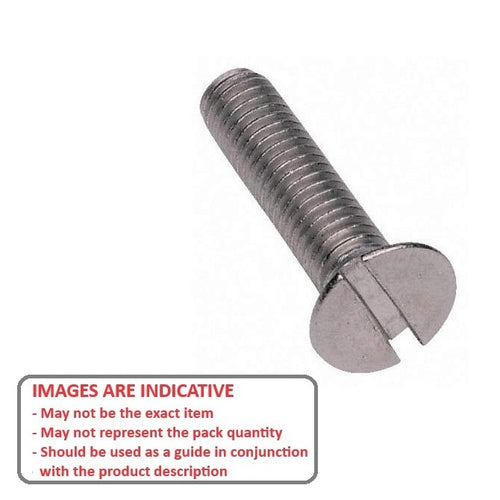

SK120M-050-SL-CZDiagramSK120M-050-SL-CZImage
