PLST-120-230-HKCLK-045 - Datasheet
MBA
Category Information

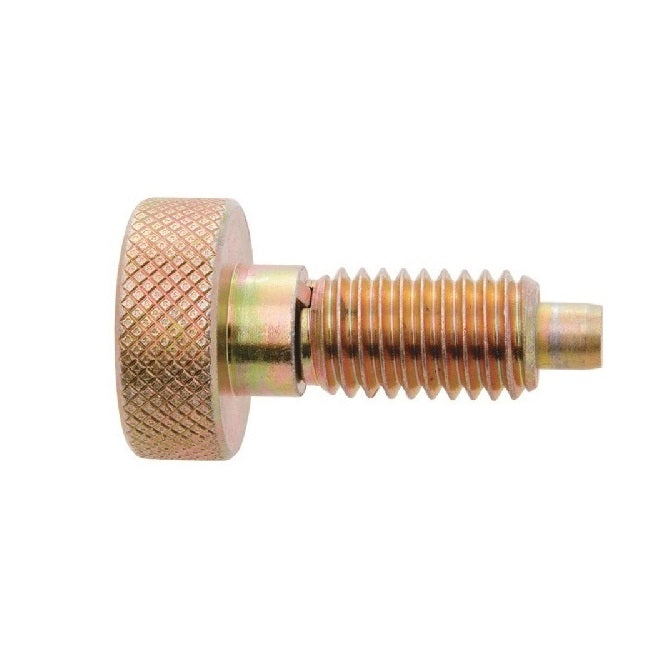

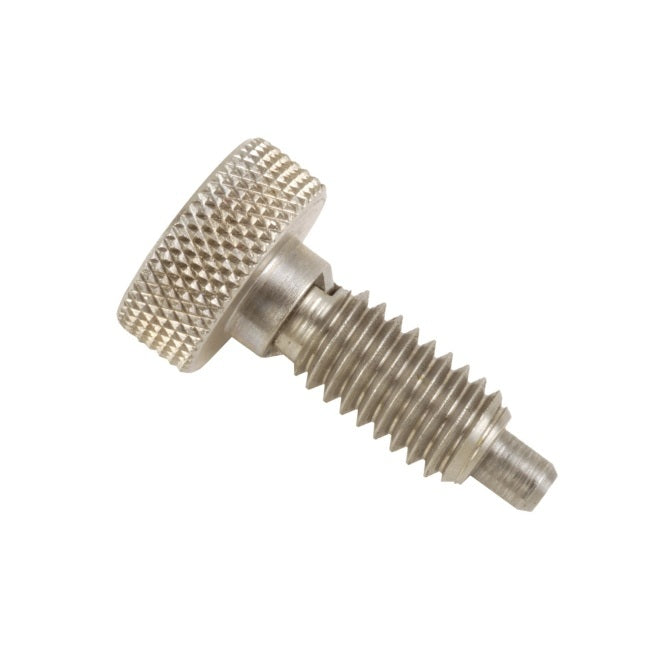

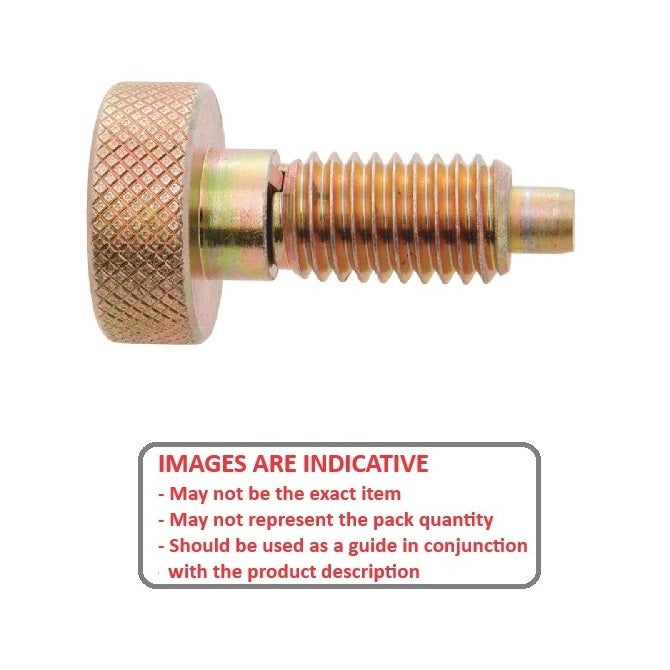

Plungers - Spring - Knurled Handle - Non Locking - SteelSteel Non Locking Knurled Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (A) : M12 (12x1.75mm)
- Thread Length (B)
23.0
mm
(Equiv. 0.906 in.) - Initial Pressure (F1) 4.5 N
- Final Pressure (F2) 44.5 N
- Tip Diameter (D) 6.0 mm
- Tip Length (C) 6.0 mm
- Head Length (F) 16.0
- Additional With Locking Element
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- PHR-120N
- PHR120N
