SS120M-0200-AS-DP - Datasheet
SSA
Category Information
Socket Set Screws - Dog Point Carbon SteelDog Point Carbon Steel Socket Set Screws. Dog point grub screws
- Socket drive grub screws with a dog point tip.
- Set screw with a cylindrical, unthreaded "dog" tip that fits into a pre-drilled hole, slot, or milled flat in a second part to permanently locate and secure two components together.
- Commonly used in machinery to prevent movement, such as locking a gear onto a shaft.

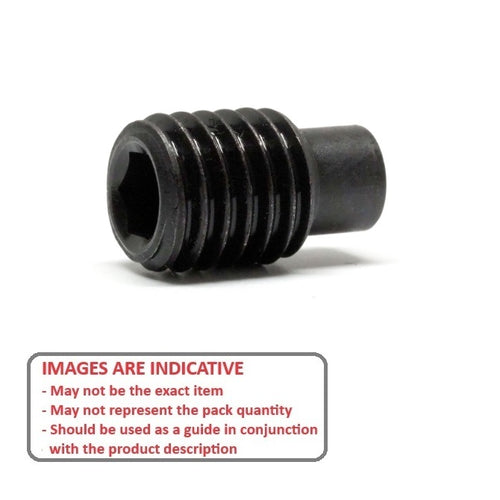

Product Data

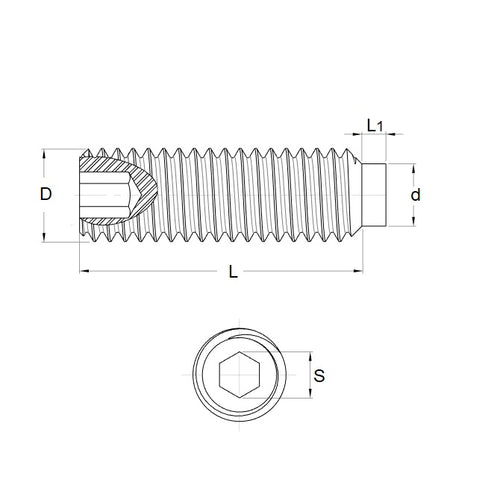

- Thread Size : M12 (12x1.75mm)
- Thread Length (L)
13.7
mm
(Equiv. 0.539 in.) - Type Dog Point
- Overall Length (L + L1) 20.0 mm
- Tip Diameter (d) 8.1 - 8.5 mm
- Tip Length (L1) 6.0 - 6.3 mm
- Hex Key Size 6.00
- Pitch 1.750 mm
- Threads Per Inch 14.51 TPI
- Material Carbon Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 833172
