Category Information

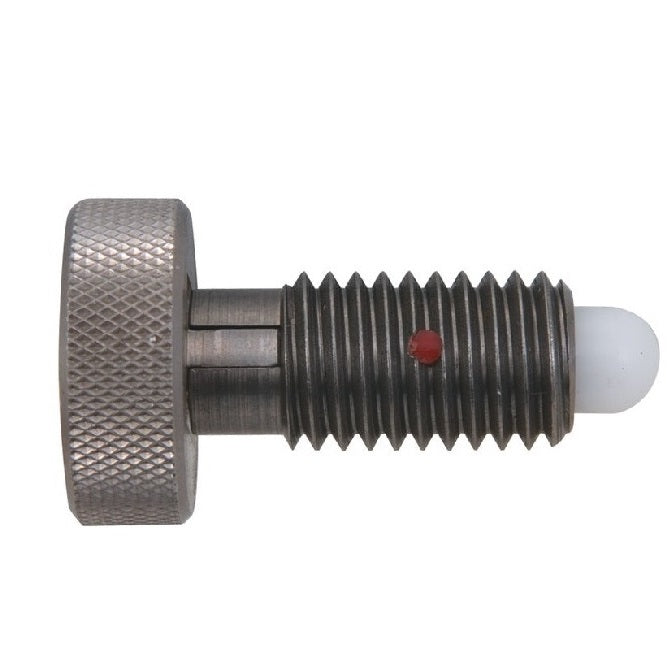

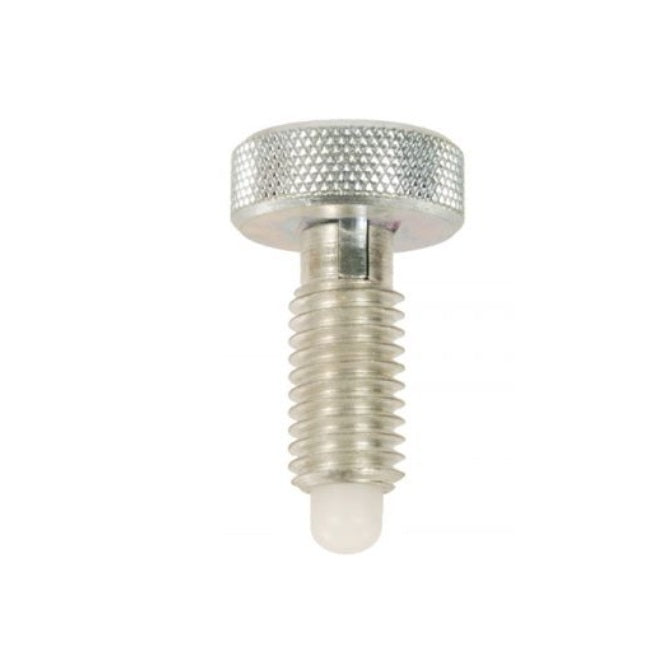

Plungers - Spring - Knurled Handle - Locking - Steel-AcetalSteel-Acetal Locking Knurled Handle Spring Plungers. Steel body with acetal nose
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data

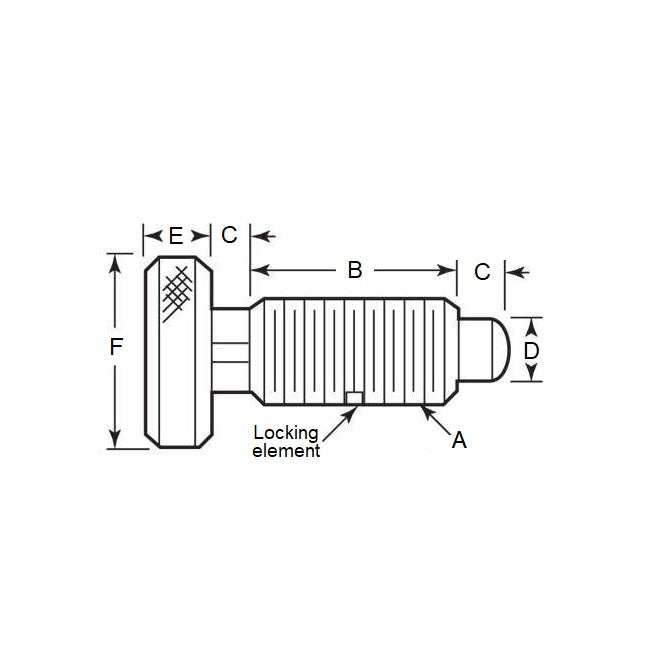

- Thread Size (A) : M12 (12x1.75mm)
- Thread Length (B)
22.2
mm
(Equiv. 0.874 in.) - Initial Pressure (F1) 11.0 N
- Final Pressure (F2) 44.5 N
- Tip Diameter (D) 7.9 mm
- Tip Length (C) 6.4 mm
- Head Height (E) 9.4 mm
- Head Diameter (F) 25.4 mm
- Material Steel Body with Acetal
Product Compliance and Data
Additional Resources
Cross References
- 2387A64
- NKPM4
- NKPM-4
