NT120M-HX-T5 - Datasheet

MBA

Category Information

Nuts - Hexagonal - Full - Titanium Ti-Gr5 Ti-6Al4v

Titanium Ti-Gr5 Ti-6Al4v Full Hexagonal Nuts. Metric. Grade 5 6Al-4V is a high strength titanium alloy. Tensile Strength 91.5kgf / mm2. Yield Strength 84.5kgf / mm2. Elongation 10 Percent.

  • An expanded range may be available on special order. Please enquire.
  • Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary. Used in critical aircraft structural components. UNS R56400.
  • If the A and H dimensions are critical for your application please consult us prior to ordering.
  • Composition Percentage: Al 5.5-6.75, V 3.5-4.5, N 0.05, C 0.08, H 0.015, Fe 0.40, O 0.2, Ti Balance
  • Grade 5 6Al-4V is a high strength titanium alloy. Tensile Strength 91.5kgf / mm2. Yield Strength 84.5kgf / mm2. Elongation 10 Percent.

Product Data

  • Thread Size : M12 (12x1.75mm)
  • Thickness (H) 10.6 mm
    (Equiv. 0.417 in.)
  • Across Flats (A/F) 19.00 mm
    (Equiv. 0.748 in.)
  • Type Standard
  • Pitch 1.750 mm
  • Threads Per Inch 14.51 TPI
  • Material Titanium Ti-Gr-5 - 6AL-4V
Country of Origin: TW

Product Compliance and Data

Additional Resources

View full details

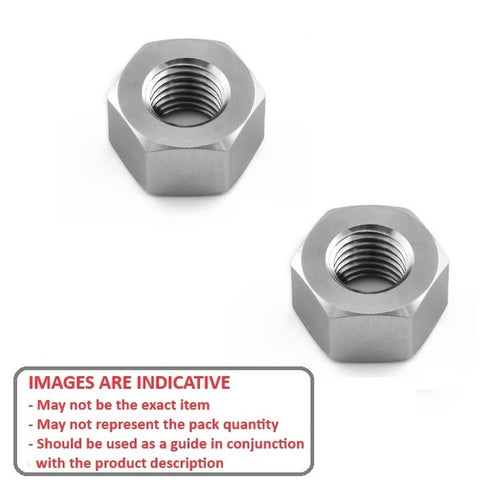

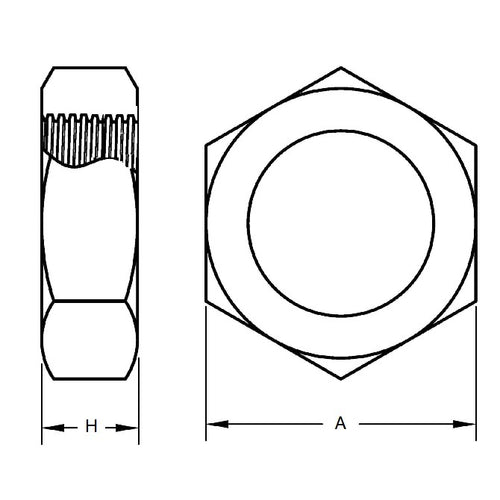

NT120M-HX-T5DiagramNT120M-HX-T5Image
