KF120M-063-5L-BR - Datasheet
MBA
Category Information

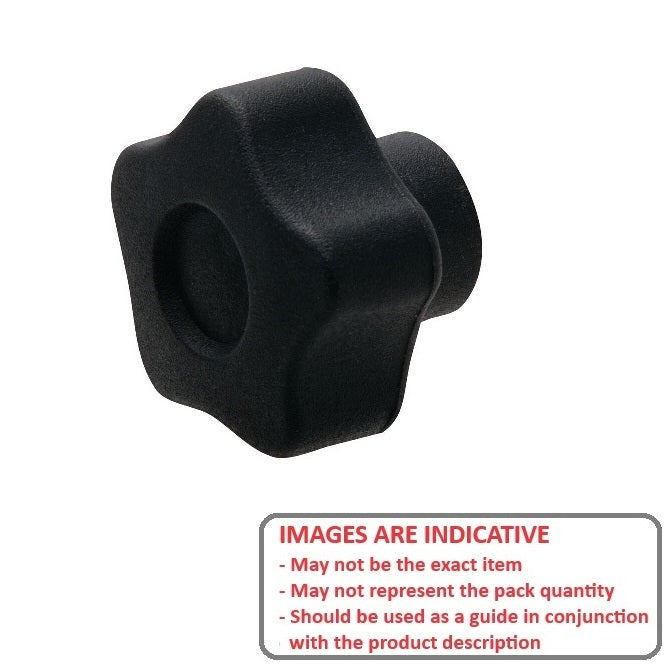

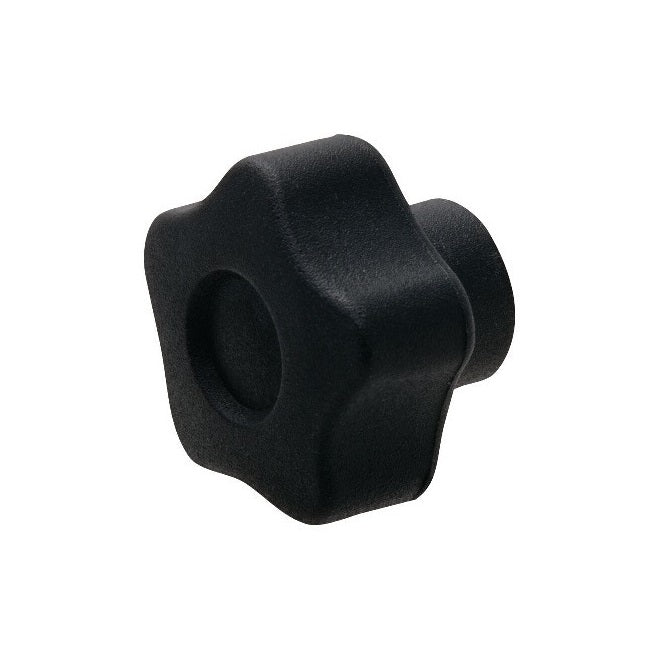

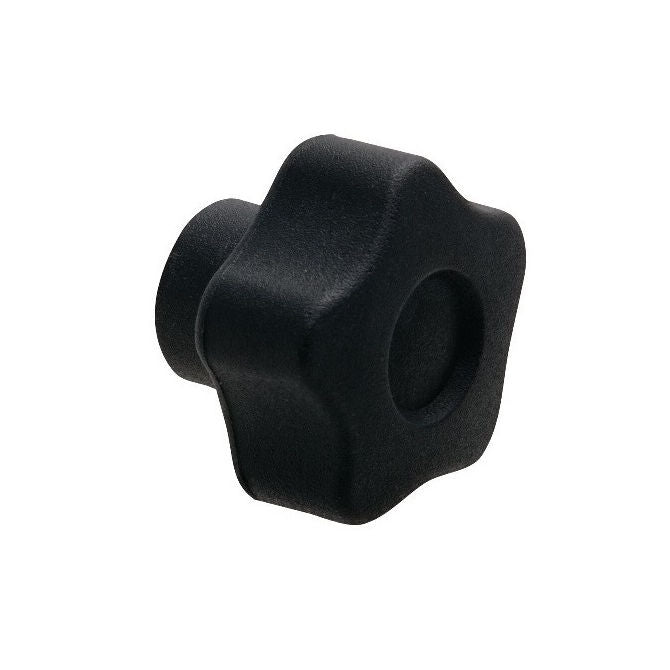

Knobs - Lobe - Five Lobe - Female - StandardStandard Female Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : M12 (12x1.75mm)

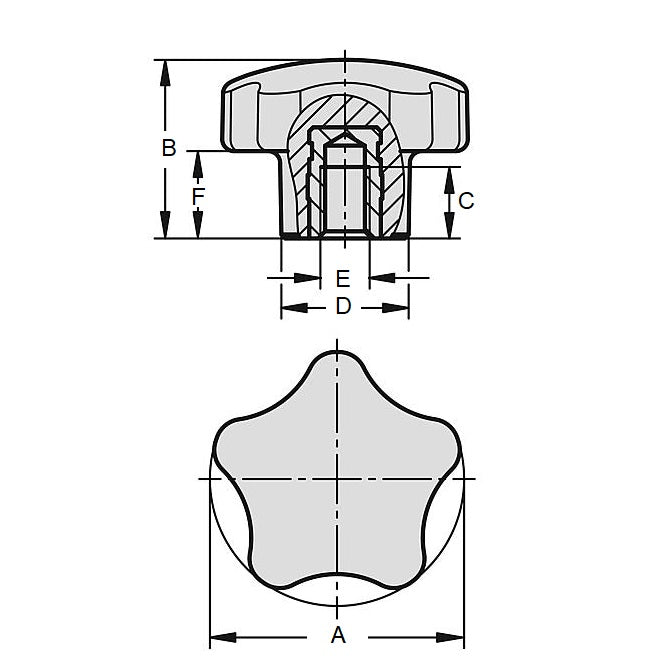

- Head Diameter (A)
63
mm
(Equiv. 2.48 in.) - Thread Length
25
mm
(Equiv. 0.984 in.) - Colour Black
- Hub Diameter (C) 26.50 mm
- Knob Height (B) 37.00 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-NWJF12
- CNWJF12
