PLBT-120M-200-CS-010 - Datasheet

MBA

Category Information

Plungers - Ball Threaded - Steel Body - Stainless Ball

Stainless Ball Steel Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

    Product Data

    • Thread Size (D) : M12 (12x1.75mm)
    • Body Length (L) 20.0 mm
      (Equiv. 0.787 in.)
    • Initial Pressure (F1) 6.00 N
    • Final Pressure (F2) 10.00 N
    • Ball Diameter (D1) 8.00 mm
    • Ball Height (H) 2.60 mm
    • 304 Stainless
    • Body Material Alloy Steel
    • Drive 6.0mm Hex
    • Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
    Country of Origin: JP

    Product Compliance and Data

    Additional Resources

    Cross References

    • Misumi C-BPJF12-10P
    • CBPJF1210P
    View full details

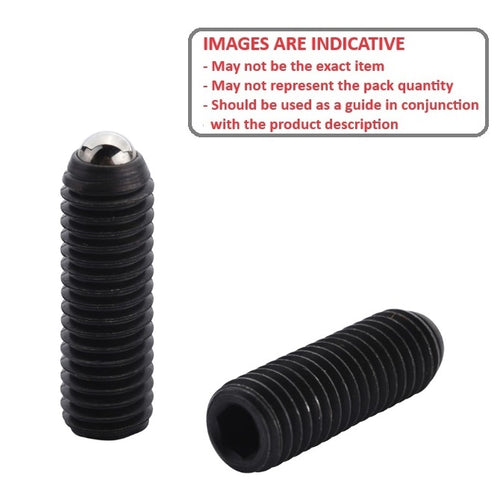

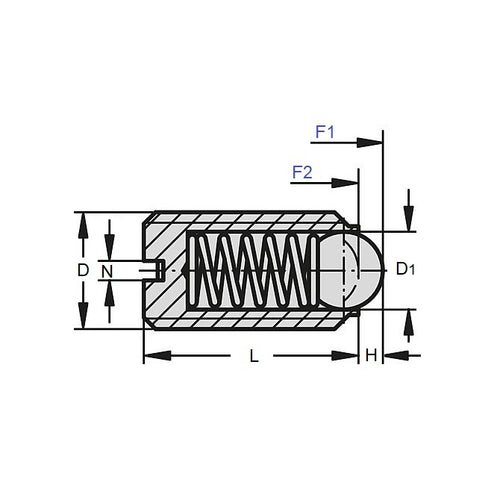

    PLBT-120M-200-CS-010DiagramPLBT-120M-200-CS-010Image
