SS120M-0120-C-MAG-SL - Datasheet

MBA

Product Data

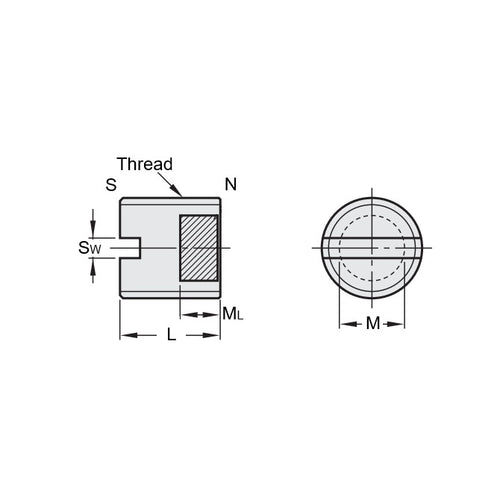

• Thread Size : M12 (12x1.75mm)
• Thread Length (L) 12.00 mm
  (Equiv. 0.472 in.)
• Type Magnetic Tipped
• Magnet Size (M) 7 x 8 mm
• Hex Key Size 2.50
• Magnet Material Neodymium Iron Boron
• Drive Type Slot
• Finish Nickel Plated
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• HXB1212
