PLBT-100M-190-CLK-049 - Datasheet
MBA
Category Information

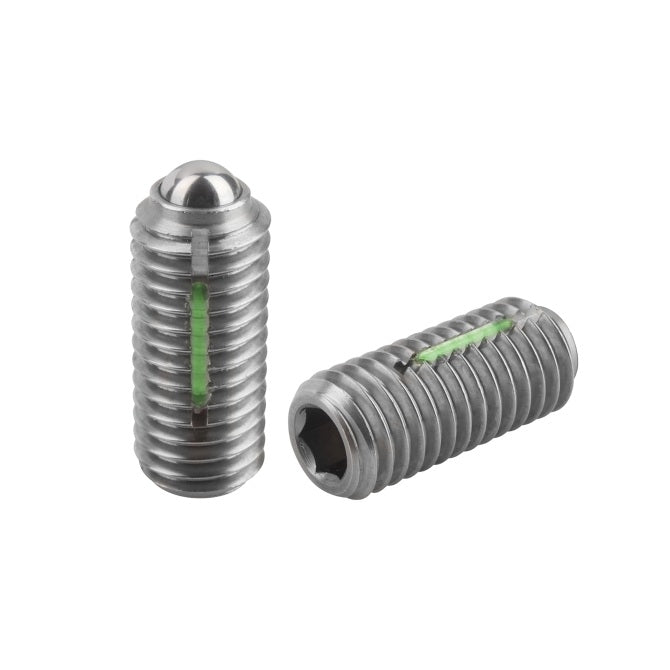

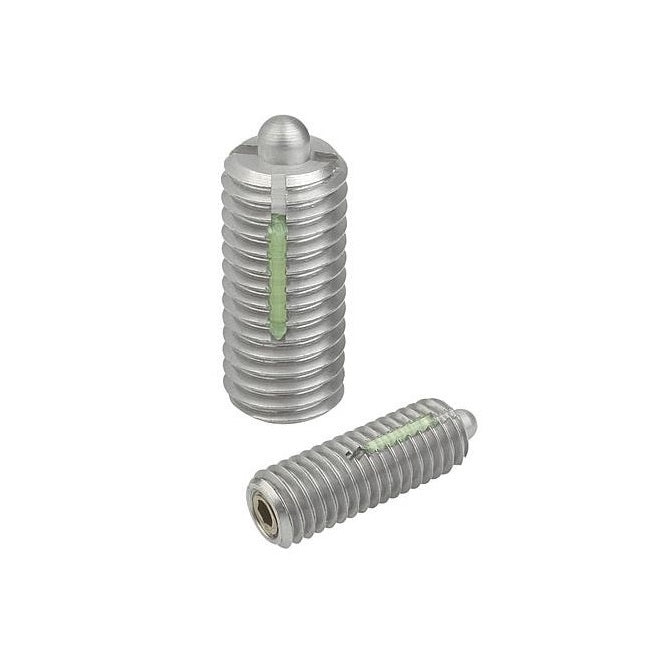

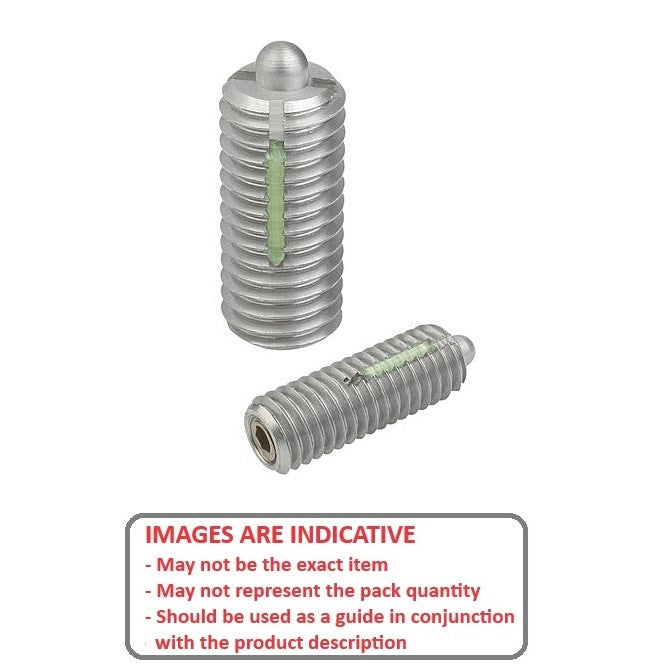

Plungers - Ball Threaded - Steel Body and Ball with ThreadlockSteel Body and Ball with Threadlock Ball Threaded Plungers. With Long-Lok thread locking compound to prevent loosening
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : M10 (10x1.5mm)
- Body Length (L)
19.0
mm
(Equiv. 0.748 in.) - Initial Pressure (F1) 18.6 N
- Final Pressure (F2) 49.0 N
- Ball Diameter (D1) 6.0 mm
- Ball Height (H) 2.1 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- BPM10/LOK
- BPM10-LOK
- BPM10LOK
- KBP-192
- KBP192
- PLBT100190CLK035
