PLST-100-190-HKC-036 - Datasheet
MBA
Category Information

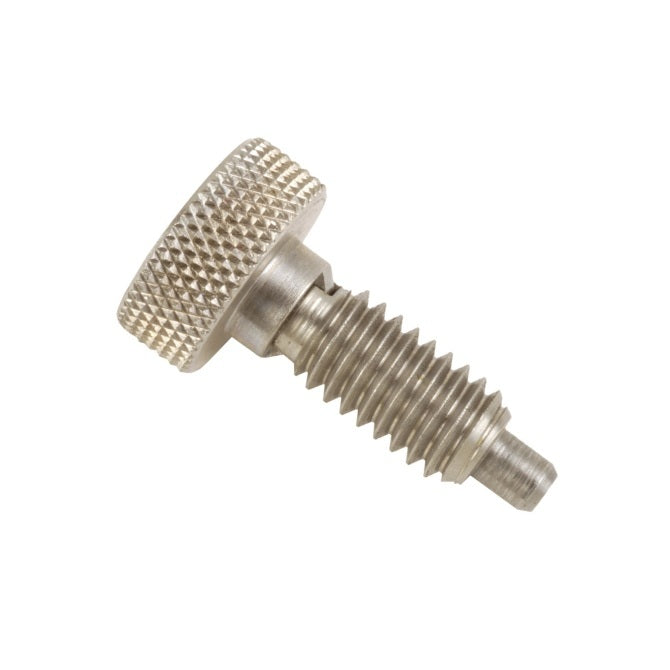

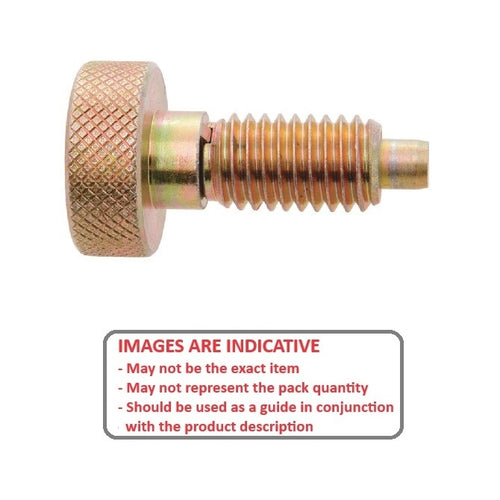

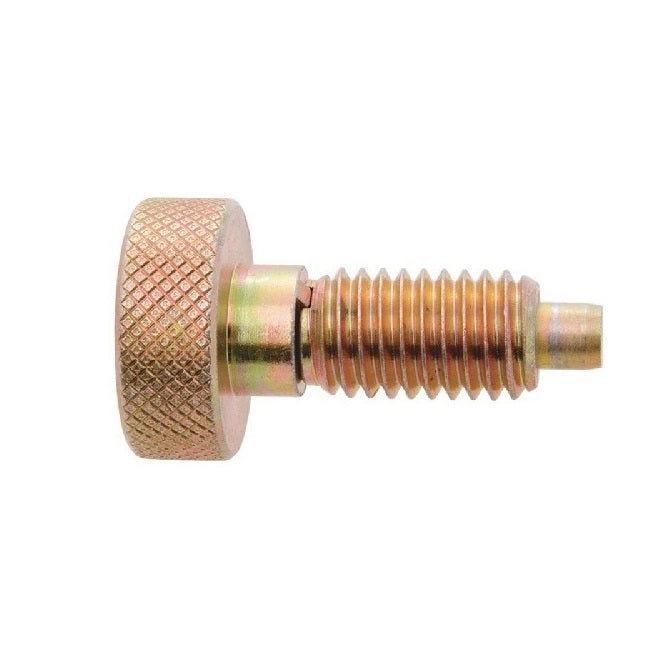

Plungers - Spring - Knurled Handle - Non Locking - SteelSteel Non Locking Knurled Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

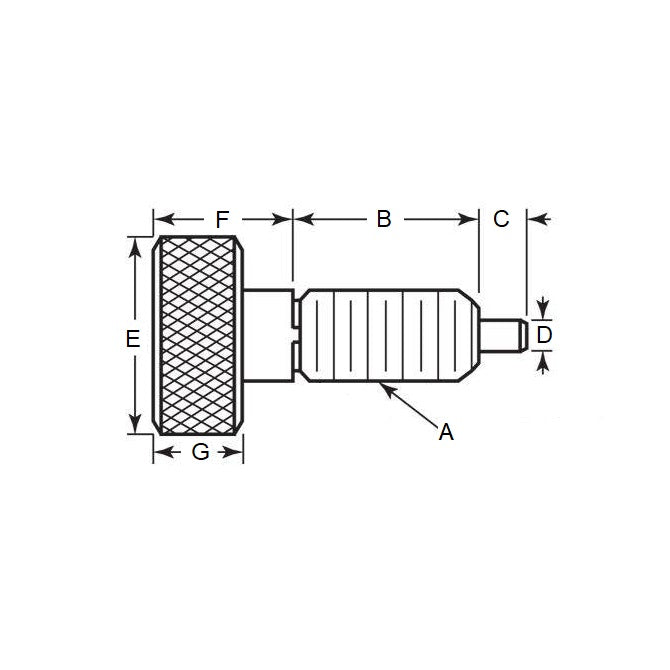

Product Data
- Thread Size (A) : M10 (10x1.5mm)
- Thread Length (B)
19.0
mm
(Equiv. 0.748 in.) - Initial Pressure (F1) 4.5 N
- Final Pressure (F2) 35.6 N
- Tip Diameter (D) 5.0 mm
- Tip Length (C) 6.0 mm
- Head Length (F) 13.0
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 84915A53
- PHR-100
- PHR100
