SS100M-0367-CS-RB - Datasheet
MBA
Category Information

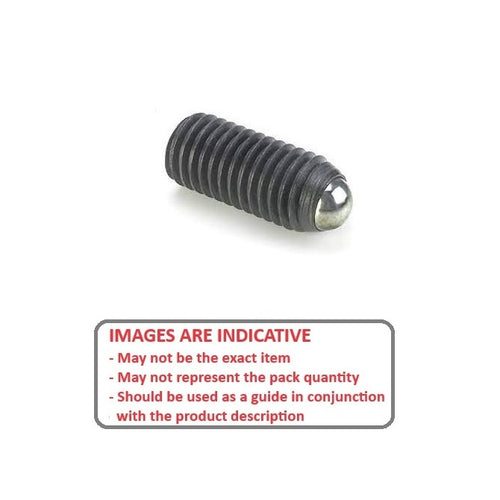

Socket Set Screws - Rolling Ball Tip - Carbon SteelCarbon Steel Rolling Ball Tip Socket Set Screws. Rolling ball tip for locating into a hole
- Rolling ball set screws are not designed to bear heavy loads.
- Used to lightly fasten fragile work pieces.
- We would recommend testing if you plan to use them in a load bearing application
- Ball materials include carbon steel, brass, Polyacetal or 440C Stainless Steel
Product Data
- Thread Size : M10 (10x1.5mm)
- Thread Length (L)
34.4
mm
(Equiv. 1.354 in.) - Type Rolling Ball Tip
- Overall Length (L) 36.7 mm
- Ball Diameter (D) 7.0 mm
- Hex Key Size 5.0
- Body Material Carbon Steel
- Ball Material Carbon Steel HRC 55-60
- Pitch 1.5 mm
- Threads Per Inch 16.93 TPI
- Finish Black Oxide
- Material Carbon Steel with Carbon Steel HRC 55-60 tip
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 93339A235
- Misumi BSR10X35
- Misumi RSM10-36.7
- Misumi SCS-M10X35-R
- RSM10367
- SCSM10X35R
- S705CBM1037
