SS100M-0367-S4-S440-RB - Datasheet
MBA
Category Information

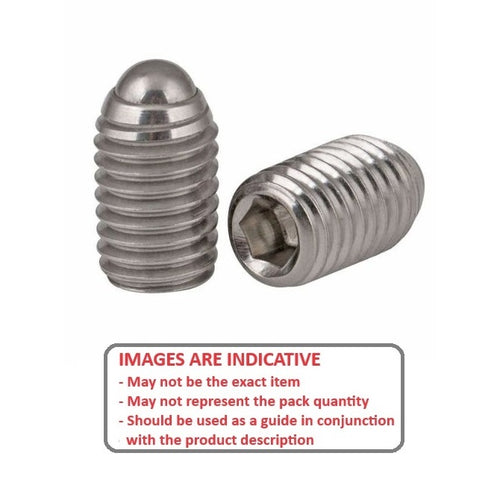

Socket Set Screws - Rolling Ball Tip - Stainless SteelStainless Steel Rolling Ball Tip Socket Set Screws. Rolling ball tip for locating into a hole
- Rolling ball set screws are not designed to bear heavy loads.
- Used to lightly fasten fragile work pieces.
- We would recommend testing if you plan to use them in a load bearing application
- Various ball materials include Alumina, Polyacetal or 440C Stainless Steel
Product Data
- Thread Size : M10 (10x1.5mm)
- Thread Length (L)
34.3
mm
(Equiv. 1.35 in.) - Type Rolling Ball Tip
- Overall Length (L) 36.7 mm
- Ball Diameter (D) 7.0 mm
- Hex Key Size 5.0
- Body Material 304 Stainless Steel
- Ball Material 440C Stainless HRC 50-55
- Pitch 1.5 mm
- Threads Per Inch 16.93 TPI
- Material 304 Stainless Steel with 440C Stainless HRC 50-55 tip
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi BSR10X35-SUS
- Misumi RSU10-36.7
- BSR10X35SUS
- RSU10367
