SS100M-0100-AS-BT - Datasheet

MBA

Category Information

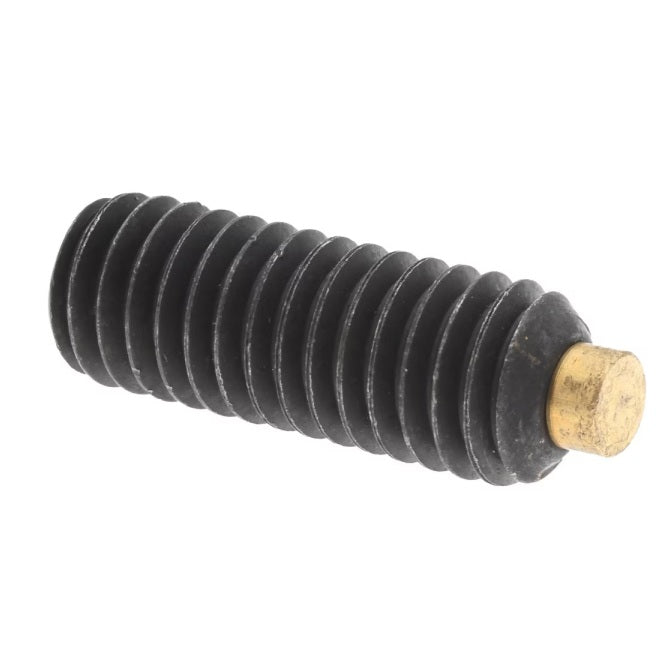

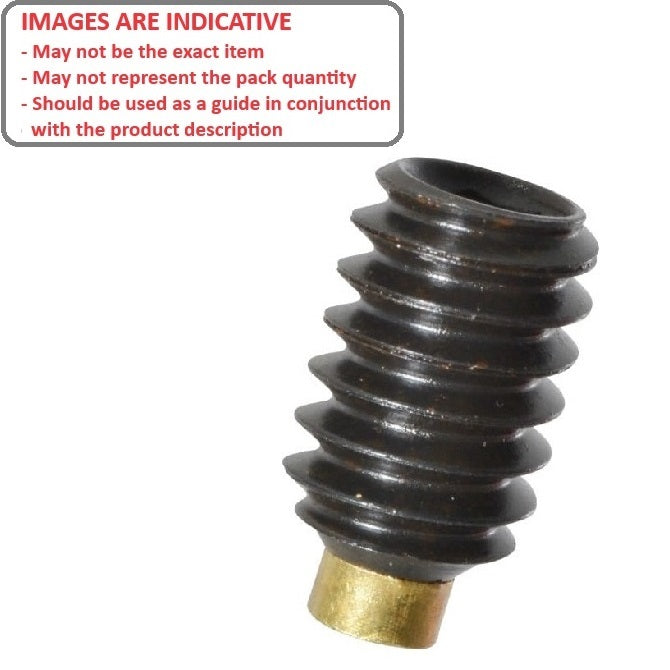

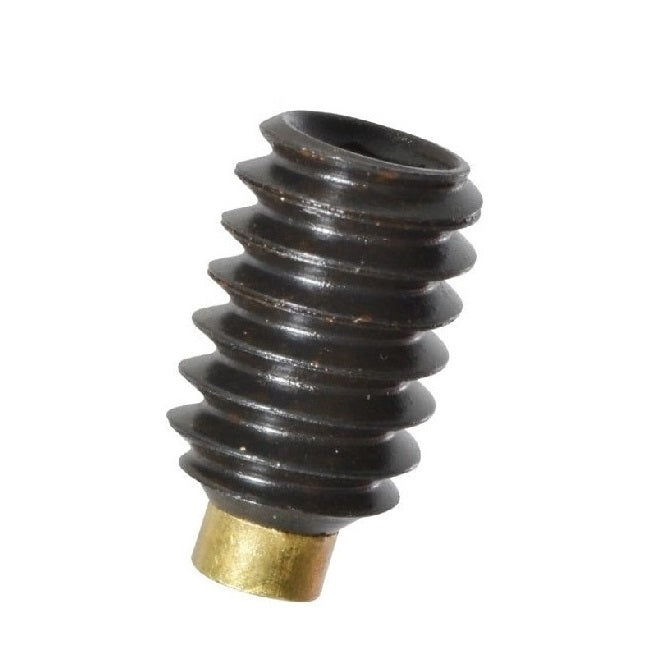

Socket Set Screws - Brass Tipped - Alloy Steel

Alloy Steel Brass Tipped Socket Set Screws. Brass tipped grub screws. Helps to prevent shaft damage on harder shafts.

  • Socket driven grub screws that uses a brass tip to prevent damage to the shaft it secures.
  • Brass tip provides a gentler contact point than a pointed or cup-point set screw, making it ideal for applications like securing gears to shafts where protecting the component's surface from marring or wear is crucial.
  • Often used in precision mechanical and electrical assemblies where a secure, non-damaging hold is required.

Product Data

  • Thread Size : M10 (10x1.5mm)
  • Thread Length (L) 10.0 mm
    (Equiv. 0.394 in.)
  • Type Brass Tipped
  • Overall Length (L + L1) 12.4 mm
  • Tip Diameter (d) 4.8 mm
  • Tip Length (L1) 2.4
  • Hex Key Size 5.00
  • Pitch 1.500 mm
  • Threads Per Inch 16.93 TPI
  • Finish Black Oxide
  • Material Carbon Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 94085A155
  • BTS-1270
  • BTS1270
