NT100M-AE-CZ - Datasheet

MBA

Category Information

Nuts - Aerotight

Aerotight Nuts. Aerotight is a Registered Trademark and can only be applied to goods manufactured by the Premier Screw and Repetition Company Limited.

  • All-metal, self-locking nut designed to stay in place even under severe vibration. Works by using a locking collar that is deflected to grip the bolt's threads, creating a "prevailing torque" that prevents loosening.
  • All-metal construction allows them to be used at higher temperatures and makes them resistant to oil.
  • Also known as an Aerotight lock nut or Stiff Nut.
  • Any company infringing the registered trade mark may be liable to legal proceedings.
  • Aerotight nuts should not be used on damaged or interrupted threads.
  • When assembled on the screw at least two threads should protrude through the Aerotight nut.
  • Advantages: Will not work loose. No other locking device needed.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

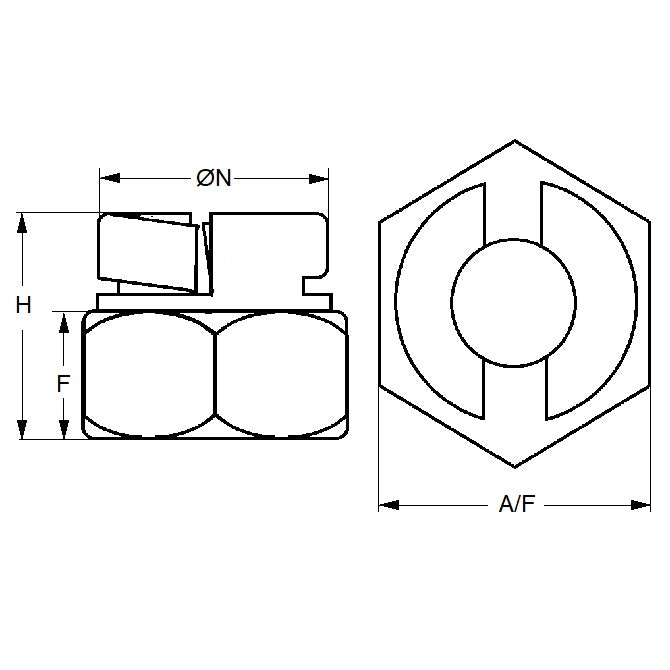

  • Thread Size : M10 (10x1.5mm)
  • Pitch in mm / Threads Per Inch 1.500 mm / 16.93 TPI
  • Overall Height (H) 12.03 mm
    (Equiv. 0.474 in.)
  • Nut Height (F) 7.62 mm
  • Across Flats (A/F) 17.00 mm
  • Material Zinc Plated Steel
Country of Origin: US
