KF100M-040-T303 - Datasheet

MBA

Category Information

Knobs - Ball - Female Threaded - Stainless Steel

Stainless Steel Female Threaded Ball Knobs. 303 stainless steel (European grade 1.4305)

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread or Hole Size : M10 (10x1.5mm)
  • Diameter 40.00 mm
    (Equiv. 1.575 in.)
  • Thread Minimum Depth 18.0 mm
    (Equiv. 0.709 in.)
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • WBK25
  • WBK-25
View full details

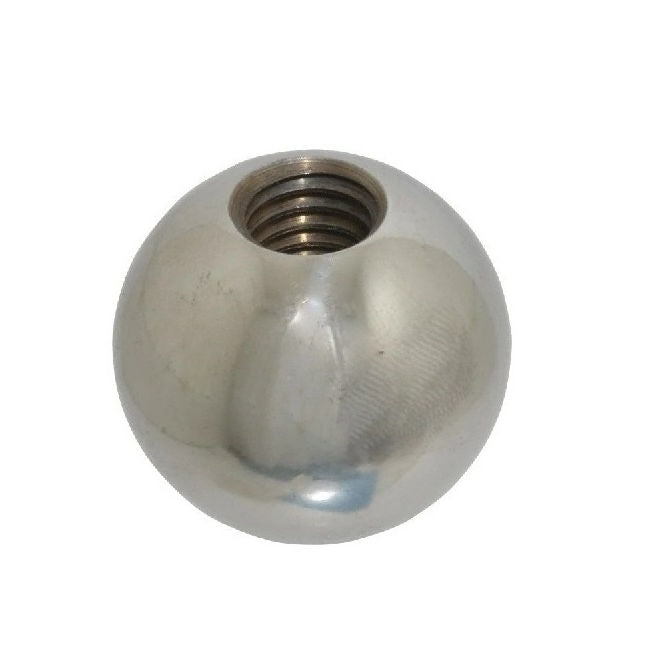

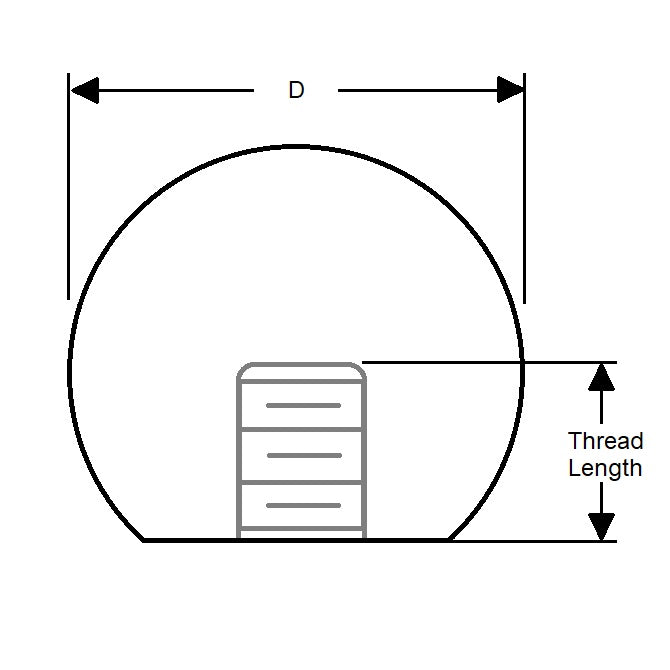

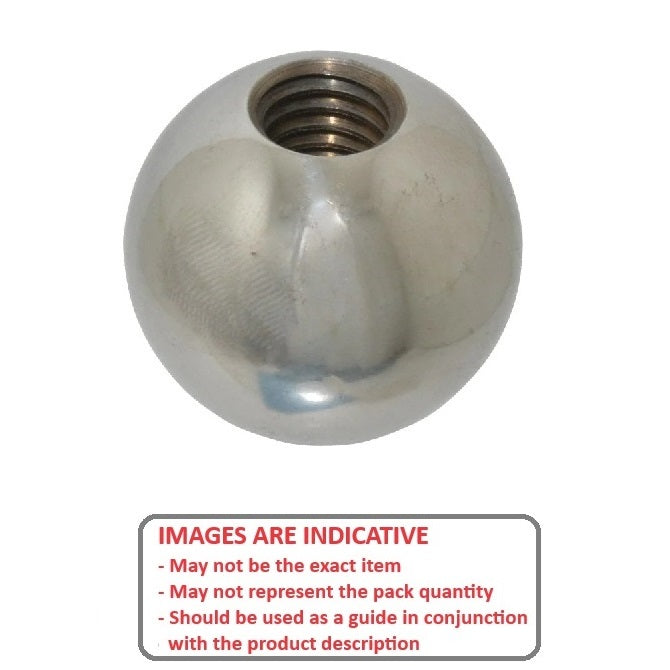

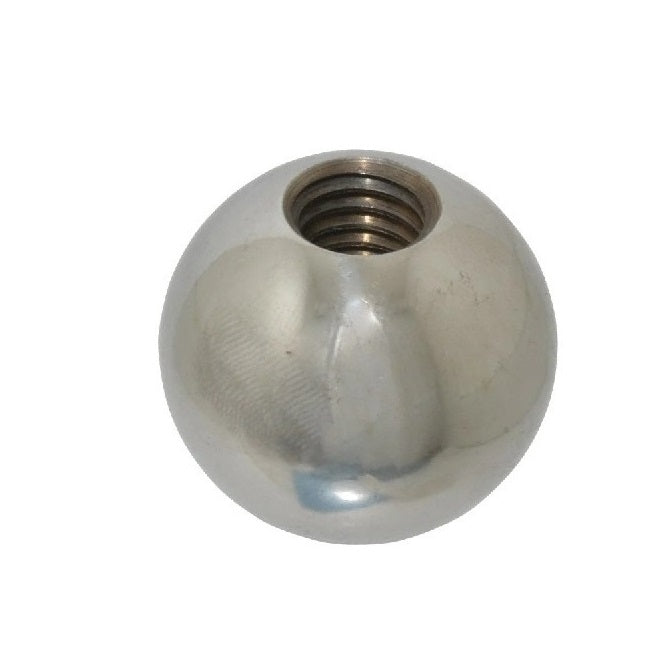

KF100M-040-T303DiagramKF100M-040-T303Image
