KF100M-050-5L-BR - Datasheet
MBA
Category Information

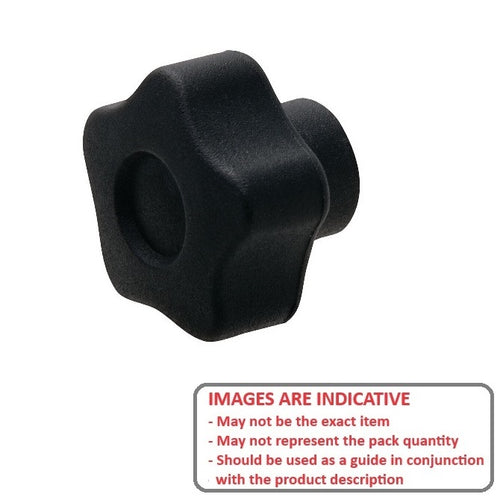

Knobs - Lobe - Five Lobe - Female - StandardStandard Female Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : M10 (10x1.5mm)

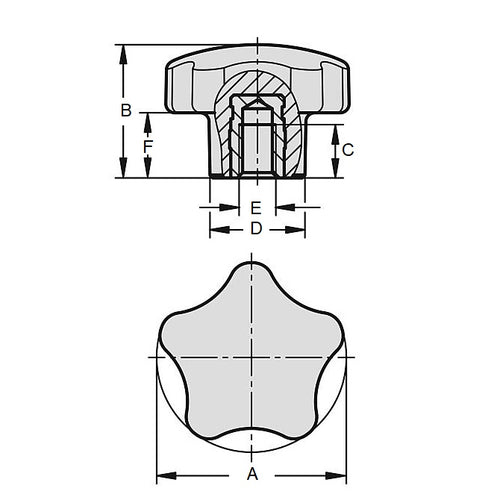

- Head Diameter (A)
50
mm
(Equiv. 1.969 in.) - Thread Length
20
mm
(Equiv. 0.787 in.) - Colour Black
- Hub Diameter (C) 25.00 mm
- Knob Height (B) 32.00 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-NWJF10
- CNWJF10
