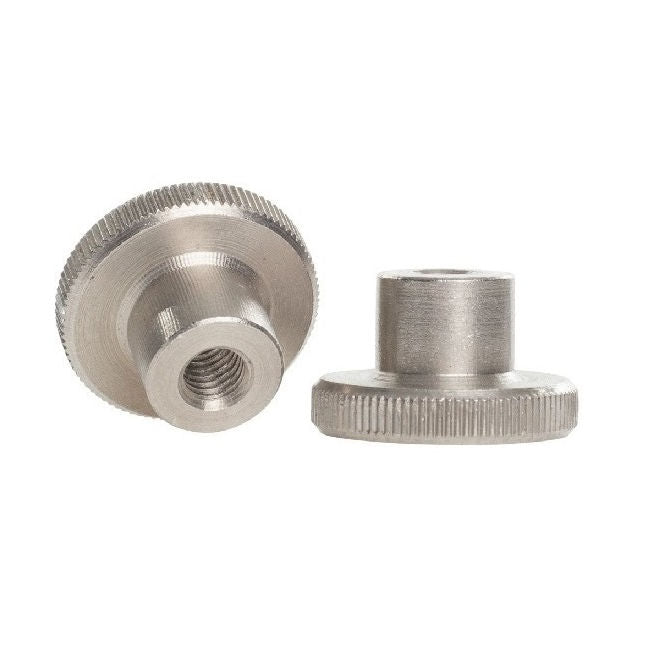

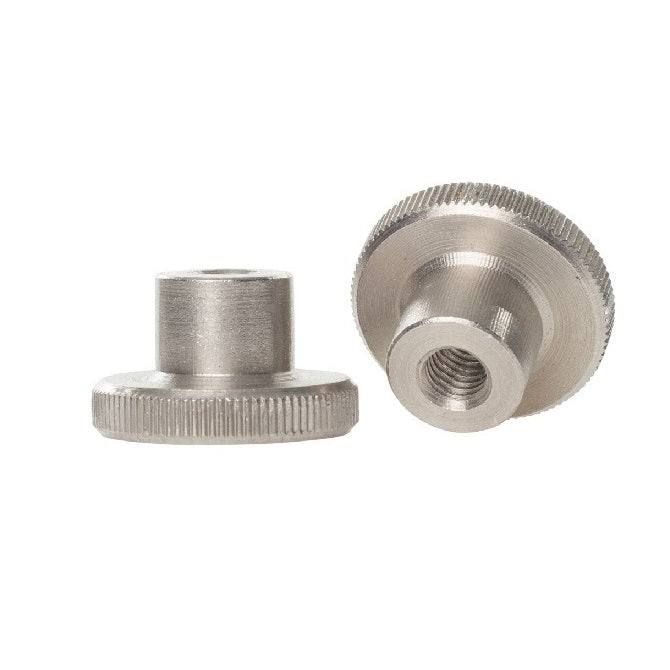

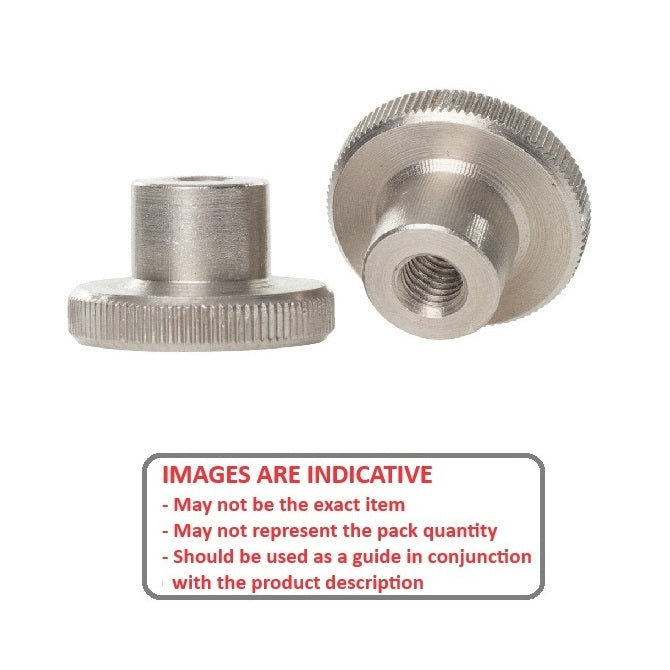

NT100M-TH23-S3 - Datasheet

MBA

Product Data

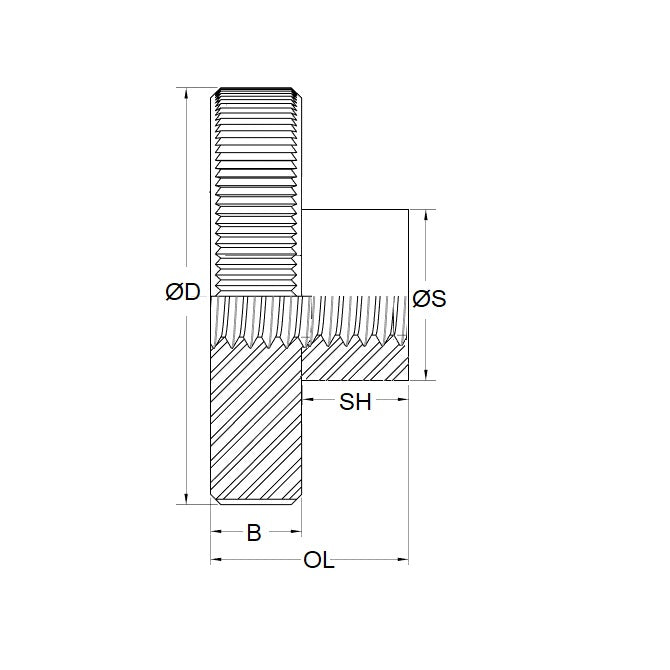

• Thread Size : M10 (10x1.5mm)
• Overall Length 23 mm
  (Equiv. 0.906 in.)
• Head Width (B) 23.00 mm
  (Equiv. 0.906 in.)
• Head Diameter 36.00 mm
• Shoulder Diameter N/A mm
• Shoulder Height N/A mm
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Thumb Screws and Nuts PDF Quick Guide

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Misumi C-NKMS10
• CNKMS10
