THS100M-030-K-3-SHL - Datasheet

MBA

Product Data

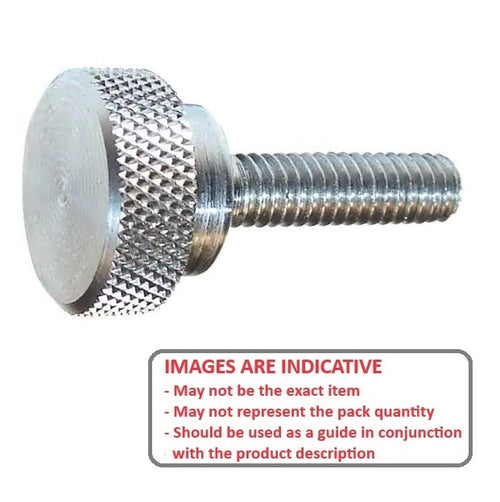

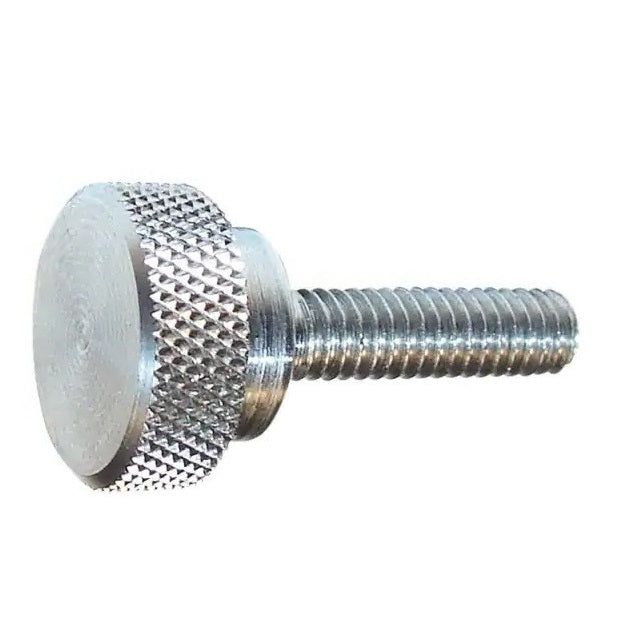

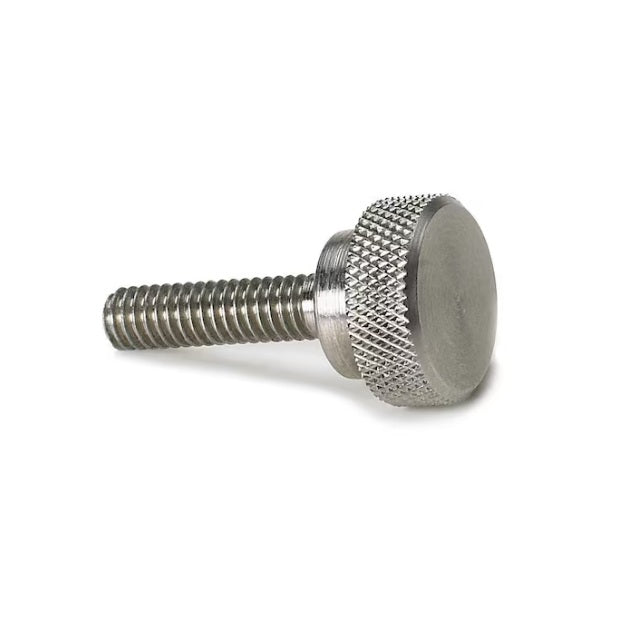

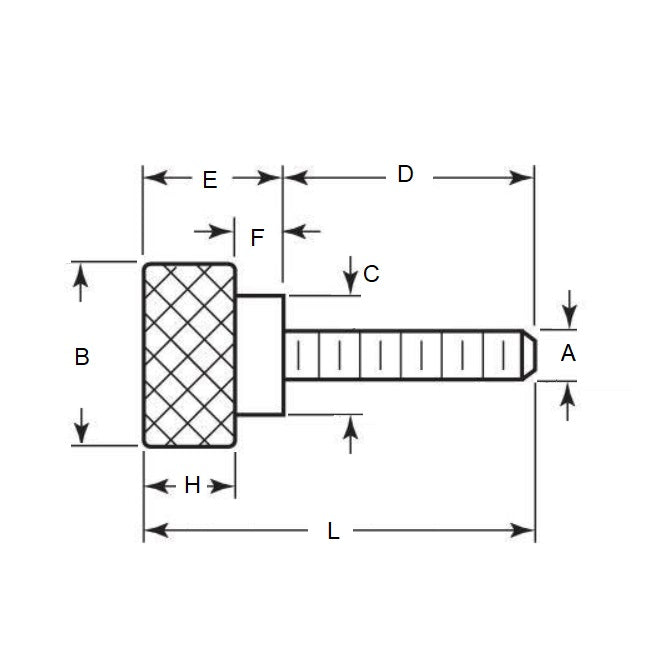

• Thread Size (A) : M10 (10x1.5mm)
• Thread Length (D) 30.00 mm
  (Equiv. 1.181 in.)
• Overall Length (L) 53.000 mm
  (Equiv. 2.087 in.)
• Head Diameter (B) 36.00 mm
• Head Height incl Shoulder (E) 23.00 mm
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Thumb Screws and Nuts PDF Quick Guide

• PDF Screws Catalogue

• Nuts


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Misumi C-NKOS10-30
• CNKOS1030
