SK017M-016-PH-S4 - Datasheet
MBA
Category Information

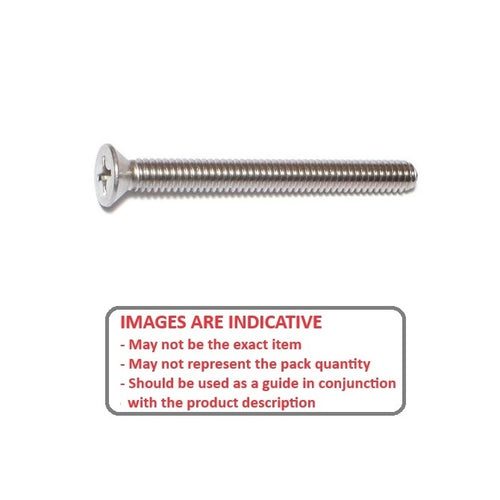

Screws - Countersunk - Phillips - 304 Stainless304 Stainless Phillips Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : M1.7 (1.7x0.35mm)
- Overall Length (L)
16
mm
(Equiv. 0.63 in.) - Material 304 Stainless
- Max Head Diameter (A) 3.20 mm
- Max Head Height 0.83 mm
- Type Countersunk / Philips
- Pitch 0.350 mm
- Threads Per Inch 72.57 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
