SK016M-012-PZ-S4 - Datasheet
MBA
Category Information
Screws - Countersunk - Stainless - PozidrivePozidrive Stainless Countersunk Screws. Flat Head Countersunk. Metric small selection only.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

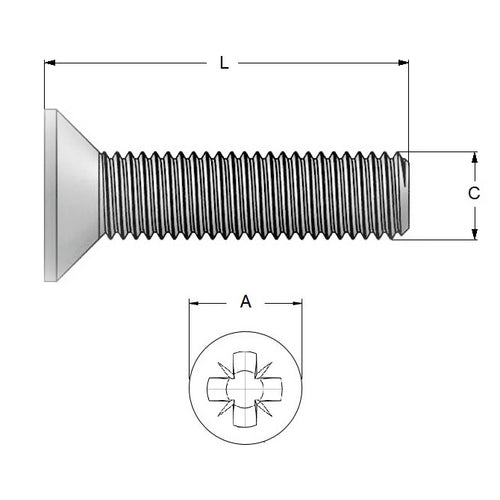

- Thread Size (C) : M1.6 (1.6x0.35mm)
- Overall Length (L)
12
mm
(Equiv. 0.472 in.) - Material 304 Stainless
- Max Head Diameter 3.00 mm
- Max Head Height 0.96 mm
- Type Countersunk / Pozidrive
- Pitch 0.350 mm
- Threads Per Inch 72.57 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- MicroFast FMSP1612
