4R-0120-1500-KZO - Datasheet

ExaktKey

Category Information

Keysteel Lengths - Square - Zinc Plated

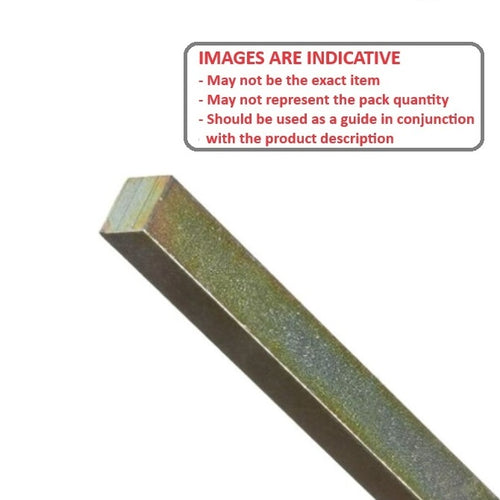

Zinc Plated Square Keysteel Lengths. Zinc plated carbon steel key steel. Square steel bar that can be used for keysteel or for small construction projects.

  • An expanded range may be available on special order. Please enquire.
  • Use oversized for replacing keys where the keyway may be slightly worn - standard aftermarket keysteel
  • Use undersized for manufacturing and new applications where the keyway tolerances can be controlled
  • Zinc plating may be silver or yellow in colour

Product Data

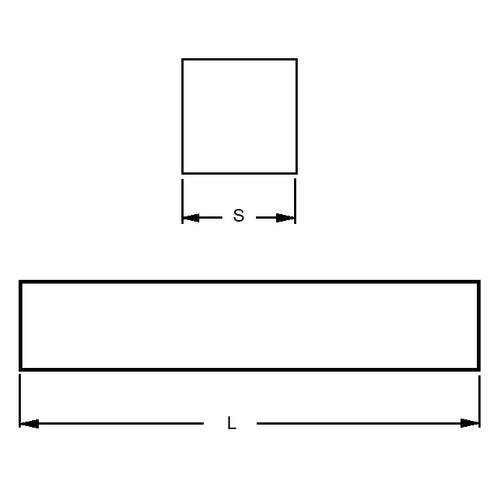

  • Width (s1) : 12.000 mm + 0.051 / - 0.00
    (Equiv. 0.472 in.)
  • Height (s2) 12.000 mm + 0.051 / - 0.00
    (Equiv. 0.472 in.)
  • Length (L) 1500 mm +/- 3.2
    (Equiv. 59.055 in.)
  • Finish Zinc Electroplate
  • Tolerance Type Oversized
  • Blue End Colour Code
  • Material Carbon Steel 1045 Zinc Plated
Country of Origin: US
