2R-0100-0180-0300-KZO - Datasheet
ExaktKey
Category Information

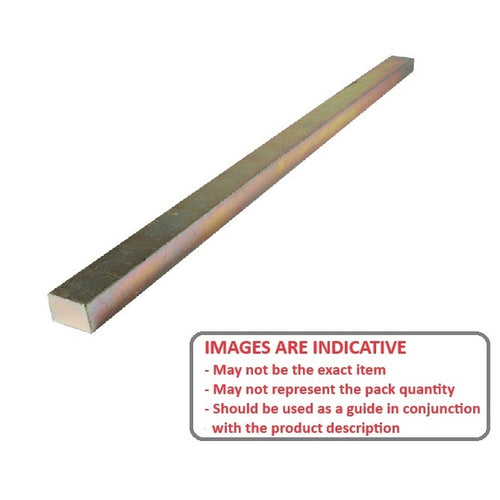

Keysteel Lengths - Rectangular - Zinc PlatedZinc Plated Rectangular Keysteel Lengths. Zinc plated carbon steel key steel. Rectangular steel bar that can be used for keysteel or for small construction projects.
- An expanded range may be available on special order. Please enquire.
- Use oversized for replacing keys where the keyway may be slightly worn - standard aftermarket keysteel
- Use undersized for manufacturing and new applications where the keyway tolerances can be controlled
- Zinc plating may be silver or yellow in colour
Product Data

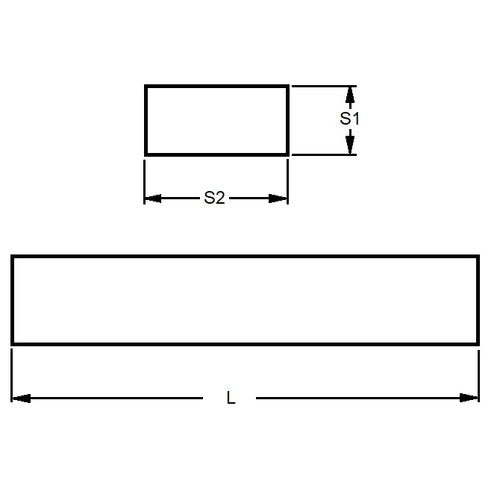

- Width (s1)
:
10.000
mm
+ 0.051 / - 0.00
 (Equiv. 0.394 in.)
- Height (s2)
18.000
mm
+ 0.076 / - 0.00
 (Equiv. 0.709 in.)
- Length (L)
300
mm
+/- 3.2
 (Equiv. 11.811 in.)
- Finish Zinc Electroplate
- Tolerance Type Oversized
- End Colour Code Blue
- Material Carbon Steel 1045 Zinc Plated
