KW-032-191-Z - Datasheet

ExaktKey

Category Information

Keys - Woodruff - Zinc Plated

Zinc Plated Woodruff Keys. This is the main category in this series

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thickness (S) : 3.18 mm +/- 0.025
    (Equiv. 0.125 in.)
  • Basis Diameter (D) 19.05 mm +/- 0.250
    (Equiv. 0.75 in.)
  • Approx. Height (H) 8.0 mm
    (Equiv. 0.315 in.)
  • Approx. Length (L) 18.67 mm
  • Finish Zinc Plated
  • Material Carbon Steel 1035 Zinc Plated
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • WOODRUFF 406-ZP
  • Make-A-Key HMEDW0007
  • 406ZP
View full details

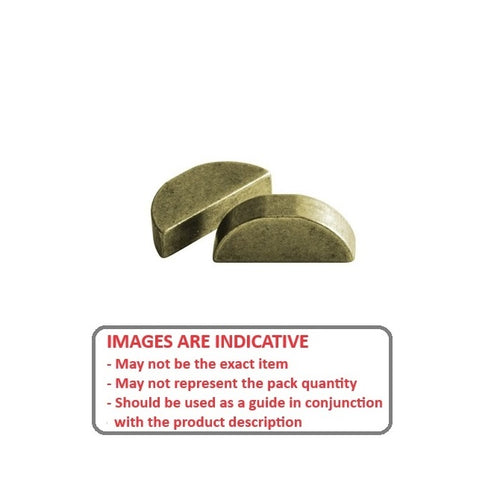

KW-032-191-ZDiagramKW-032-191-ZImage
