KW-080-450-C - Datasheet
ExaktKey
Category Information

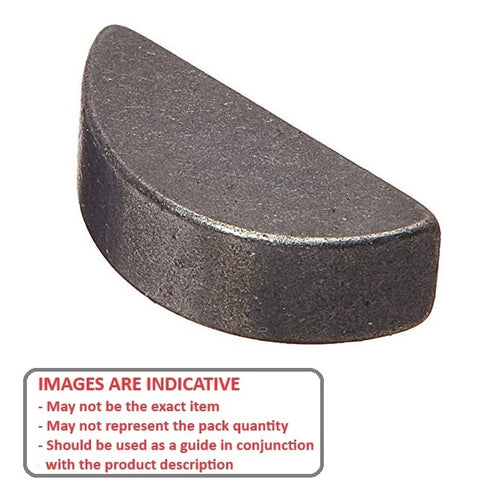

Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data

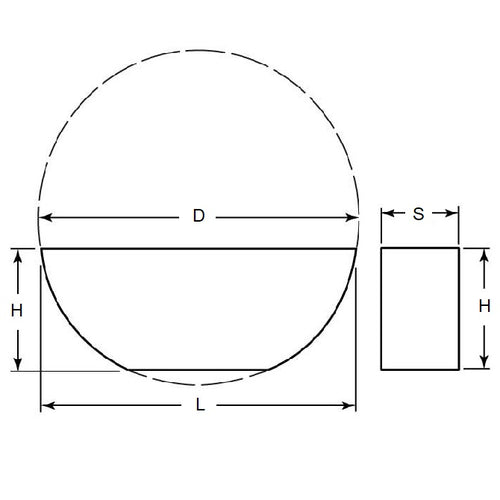

- Thickness (S)
:
8.00
mm
+/- 0.025
(Equiv. 0.315 in.) - Basis Diameter (D)
45.00
mm
+/- 0.250
(Equiv. 1.772 in.) - Approx. Height (H)
20.0
mm
(Equiv. 0.787 in.) - Approx. Length (L) 43.08 mm
- Finish Plain
- Hardness HRB 80
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- NoCor WKMC-080450
- WKMC080450
- KU845
- KU8-45
