KW-080-110-C - Datasheet
ExaktKey
Category Information

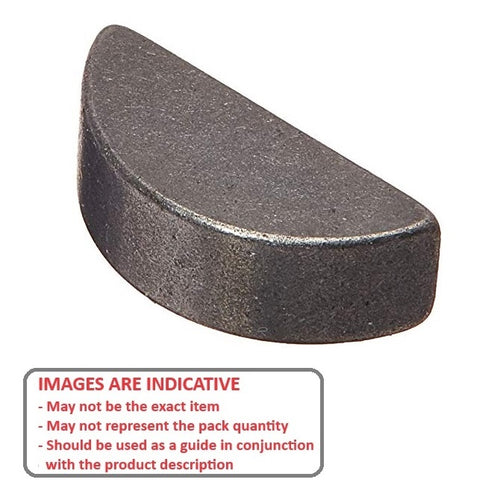

Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data

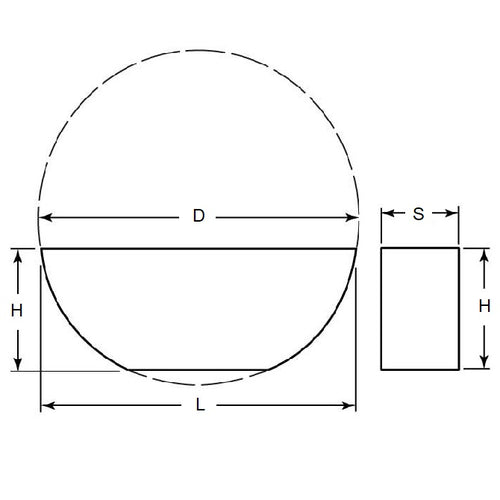

- Thickness (S)
:
8.00
mm
+/- 0.025
(Equiv. 0.315 in.) - Basis Diameter (D)
11.00
mm
+/- 0.250
(Equiv. 0.433 in.) - Approx. Height (H)
4.6
mm
(Equiv. 0.181 in.) - Finish Plain
- Hardness HRB 80
- Material Carbon Steel C45
