Miniature Bearings Australia
KW-079-102-348-C - Datasheet
MBA
Category Information

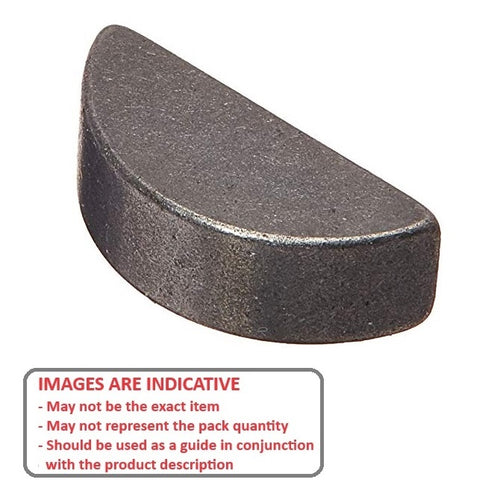

Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data

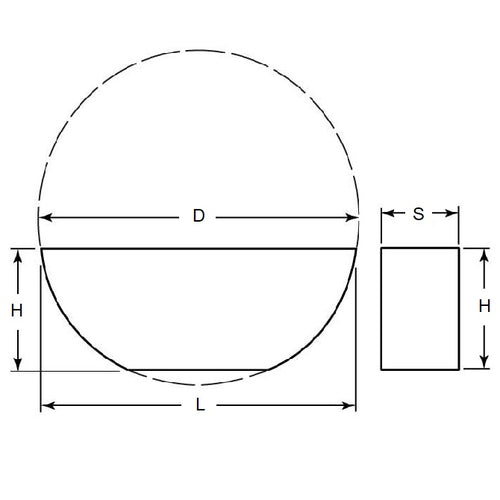

- Thickness (S) : 7.94 mm
- Approx. Height (H) 10.2 mm
- Approx. Length (L) 34.80 mm
- Basis Diameter (D) 53.98 mm
- Finish Plain
- Hardness HRB 80
- Material Carbon Steel C45
