KW-048-254-C-PK20 - Datasheet
ExaktKey
Category Information

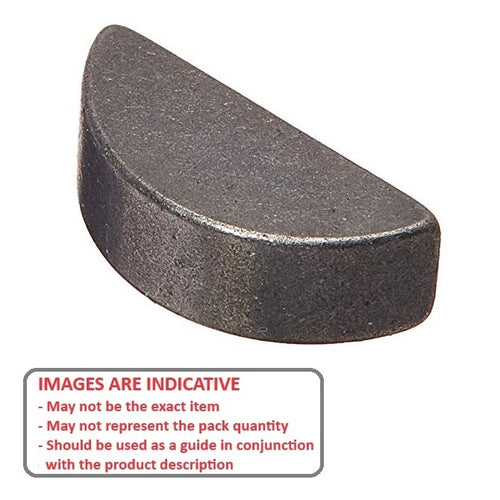

Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data

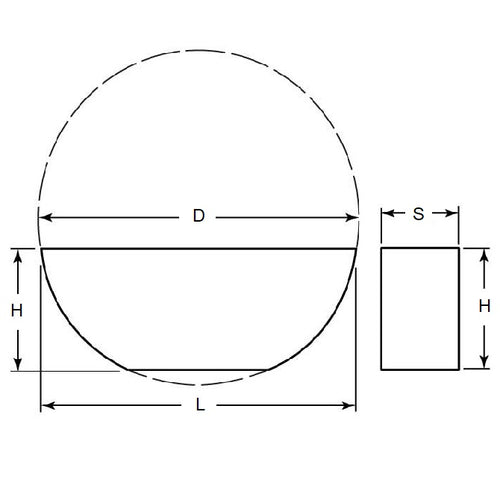

- Thickness (S)
:
4.76
mm
+/- 0.025
(Equiv. 0.187 in.) - Basis Diameter (D)
25.40
mm
+/- 0.250
(Equiv. 1 in.) - Approx. Height (H)
10.7
mm
(Equiv. 0.421 in.) - Finish Plain
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- ROCX8081510
- ROC-X8081-510
