KW-040-075-C - Datasheet
ExaktKey
Category Information

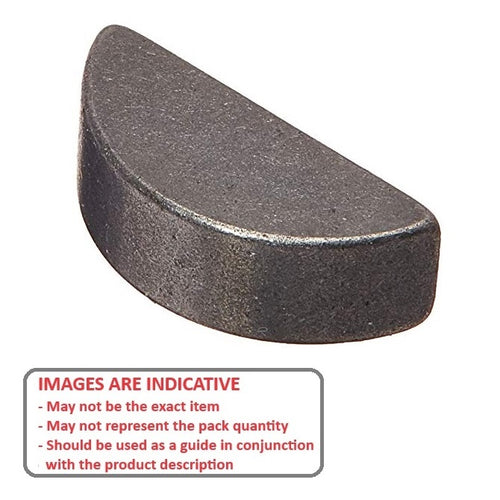

Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data

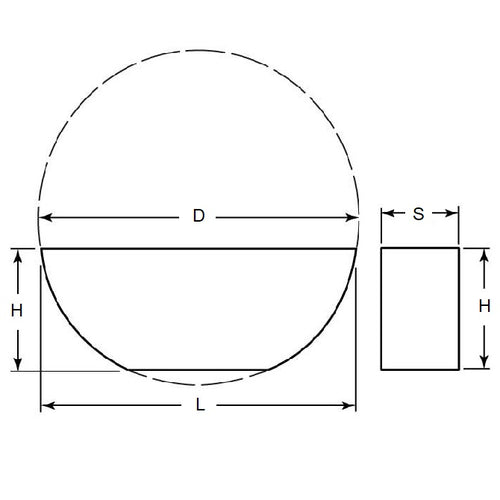

- Thickness (S)
:
4.00
mm
+/- 0.025
(Equiv. 0.157 in.) - Basis Diameter (D)
7.50
mm
+/- 0.250
(Equiv. 0.295 in.) - Approx. Height (H)
3.2
mm
(Equiv. 0.126 in.) - Finish Plain
- Hardness HRB 80
- Material Carbon Steel C45
