Miniature Bearings Australia
CL-030HG-09-LD - Datasheet
MBA
Category Information

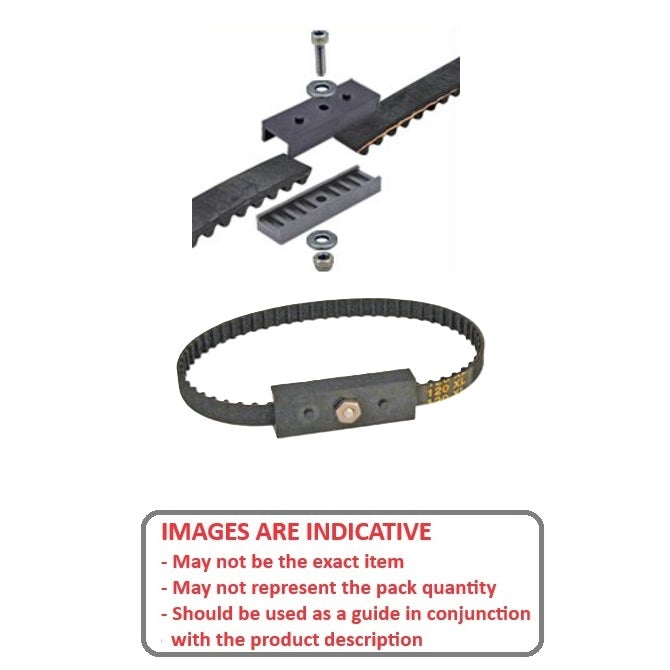

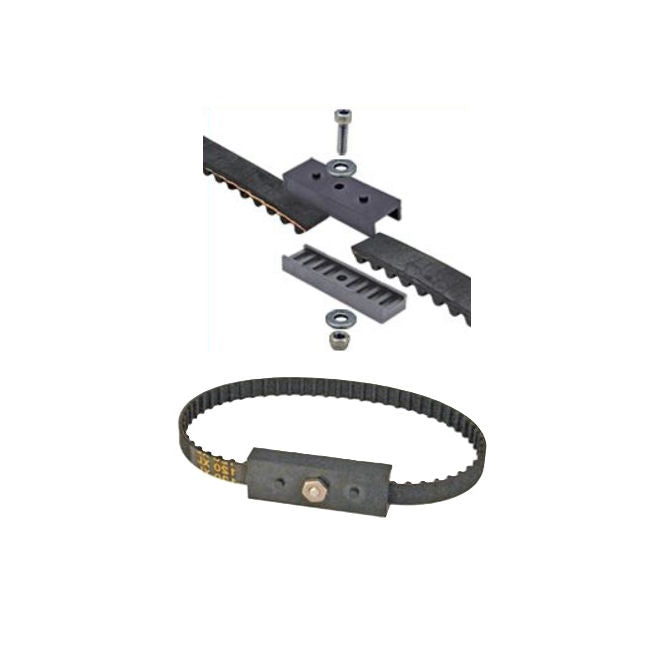

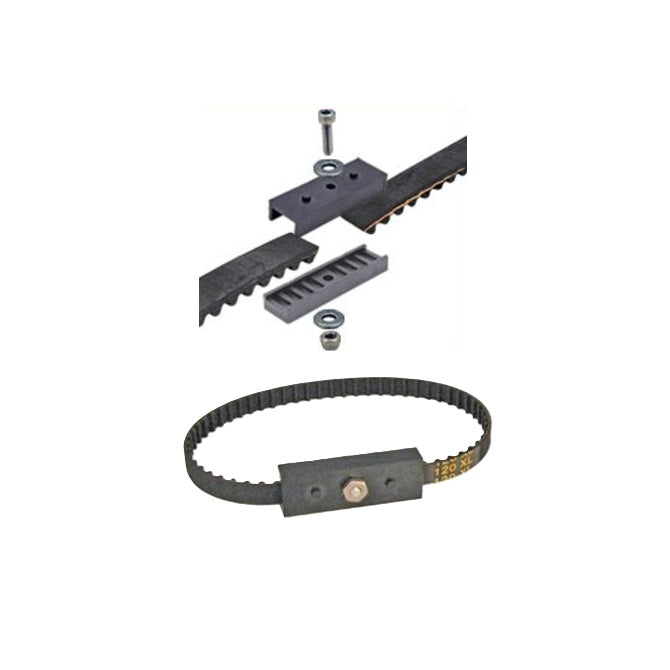

Belts - Timing Clamp - Light DutyLight Duty Timing Clamp Belts. Used for locking the ends of timing belt lengths used in reciprocating applications
- Timing belt clamps are used to hold the ends of timing belts secure when used in reciprocating applications.
- Non-joined timing belts, also known as continuous or endless timing belts, are used in applications where a seamless, uninterrupted belt is required to provide precise, reliable synchronization over a long span.
- These belts are ideal for systems that demand consistent timing and minimal maintenance. Backorders or orders for previously listed items in the category may still be possible - please enquire.
- Suits single and double sided belts
- Black Polycarbonate with 303 stainless fasteners
- Low inertia. Compact Design
- Patent Pending
- For MXL, XL, GT 2mm, GT 3mm, GT 5mm, HTD 3mm and HTD 5mm belt pitches
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

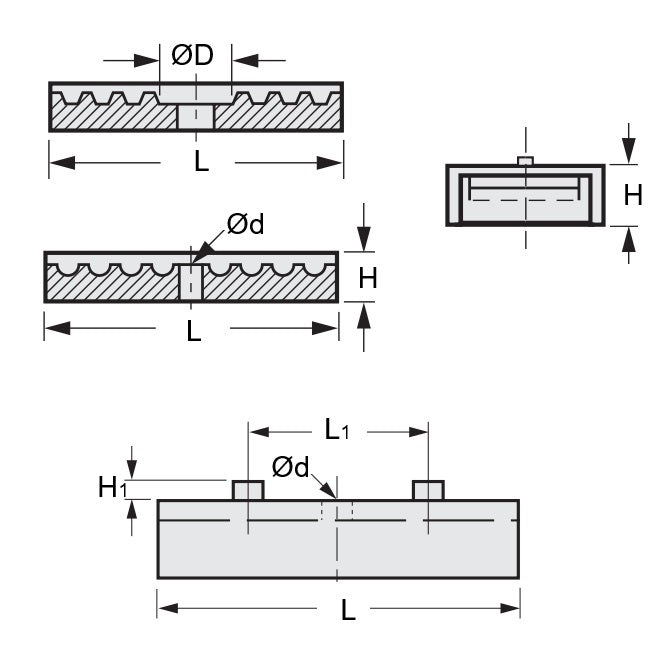

- Suitable Pitch : HTD or GT (3mm)
- Suits Belt Width
9.00
mm
(Equiv. 0.354 in.) - A
9.40
mm
(Equiv. 0.37 in.) - B 7.57 mm
- C 3.68 mm
- D 25.40 mm
- E 16.00 mm
- Min Temperature 47.75 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- A 6M53M090
- CL030HG09KIT
