BB-064-L280 - Datasheet

Iglidur

Category Information

Housing and Bearing Assembly - Pillow Block - Thermoplastic - W300

W300 Thermoplastic Pillow Block Housing Assembly. Iglide L280 / Igus W300 Ball with Thermoplatic Body.

  • Maintenance Free, Lightweight, Self-Lubricating.
  • Compensates for alignment errors.
  • Temperature Range -40 oC to +130 oC.
  • Max. Static Tensile Strength is Long Term. Info for Short Term also available.

Product Data

  • Bore Diameter (d) : 6.350 mm + 0.025 / + 0.083
    (Equiv. 0.25 in.)
  • Overall Length (L) 44.450 mm
    (Equiv. 1.75 in.)
  • Height (H) 19.810 mm
    (Equiv. 0.78 in.)
  • Width (W) 6.350 mm
  • Overall Width (W2) 9.530 mm
  • Distance Base to Centre 9.910 mm
  • Max. Angle of Pivot 25 °
  • Max. Static Tensile Strength 250 N
  • Material (Body) Thermoplastic
  • Material (Ball) L280 Polymer
Country of Origin: DE

Product Compliance and Data

Additional Resources

    Cross References

    • Igus KSTI-04
    • S61GPB025038
    • S61GPB-025038
    • KSTI04
    View full details

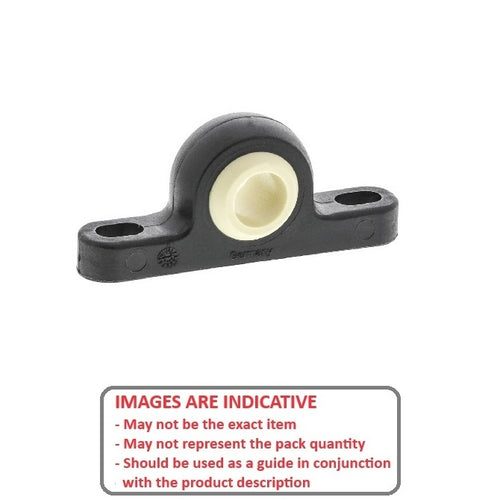

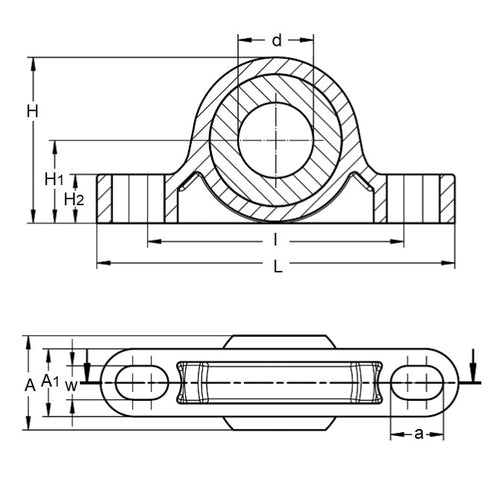

    BB-064-L280DiagramBB-064-L280Image
