BB-048-L280 - Datasheet
Iglidur
Category Information

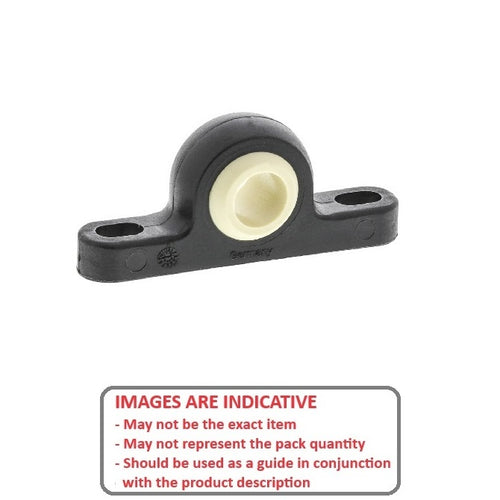

Housing and Bearing Assembly - Pillow Block - Thermoplastic - W300W300 Thermoplastic Pillow Block Housing Assembly. Iglide L280 / Igus W300 Ball with Thermoplatic Body.
- Maintenance Free, Lightweight, Self-Lubricating.
- Compensates for alignment errors.
- Temperature Range -40 oC to +130 oC.
- Max. Static Tensile Strength is Long Term. Info for Short Term also available.

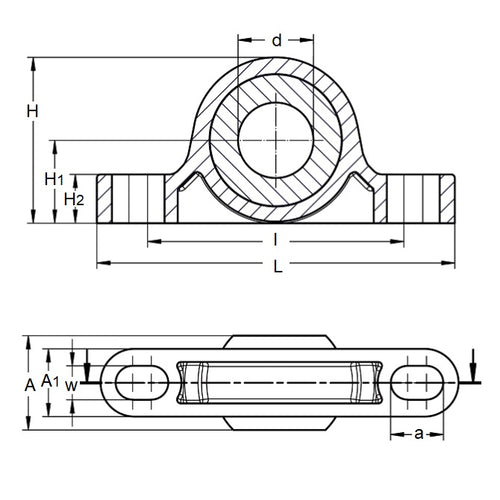

Product Data
- Bore Diameter (d)
:
4.830
mm
+ 0.020 / + 0.068
(Equiv. 0.19 in.) - Overall Length (L)
35.560
mm
(Equiv. 1.4 in.) - Height (H)
14.730
mm
(Equiv. 0.58 in.) - Width (W) 5.940 mm
- Overall Width (W2) 7.920 mm
- Distance Base to Centre 7.370 mm
- Max. Angle of Pivot 25 °
- Max. Static Tensile Strength 150 N
- Material (Body) Thermoplastic
- Material (Ball) L280 Polymer
Product Compliance and Data
Additional Resources
Cross References
- Igus KSTI-03
- KSTI03
