BB-095-L280 - Datasheet

Iglidur

Category Information

Housing and Bearing Assembly - Pillow Block - Thermoplastic - W300

W300 Thermoplastic Pillow Block Housing Assembly. Iglide L280 / Igus W300 Ball with Thermoplatic Body.

  • Maintenance Free, Lightweight, Self-Lubricating.
  • Compensates for alignment errors.
  • Temperature Range -40 oC to +130 oC.
  • Max. Static Tensile Strength is Long Term. Info for Short Term also available.

Product Data

  • Bore Diameter (d) : 9.530 mm + 0.025 / + 0.083
    (Equiv. 0.375 in.)
  • Overall Length (L) 60.960 mm
    (Equiv. 2.4 in.)
  • Height (H) 27.940 mm
    (Equiv. 1.1 in.)
  • Width (W) 9.120 mm
  • Overall Width (W2) 12.700 mm
  • Distance Base to Centre 13.970 mm
  • Max. Angle of Pivot 22 °
  • Max. Static Tensile Strength 325 N
  • Material (Body) Thermoplastic
  • Material (Ball) L280 Polymer
Country of Origin: DE

Product Compliance and Data

Additional Resources

    Cross References

    • Igus KSTI-06
    • S61GPB038050
    • S61GPB-038050
    • KSTI06
    View full details

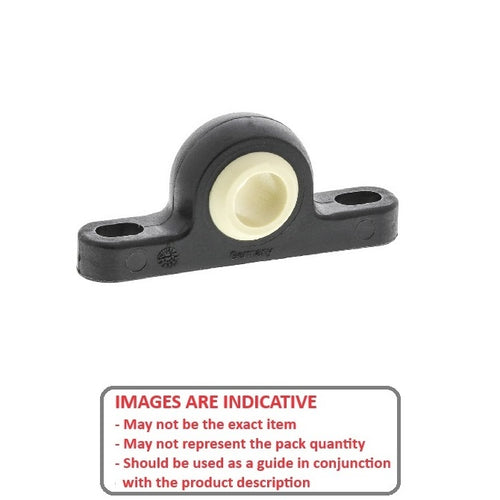

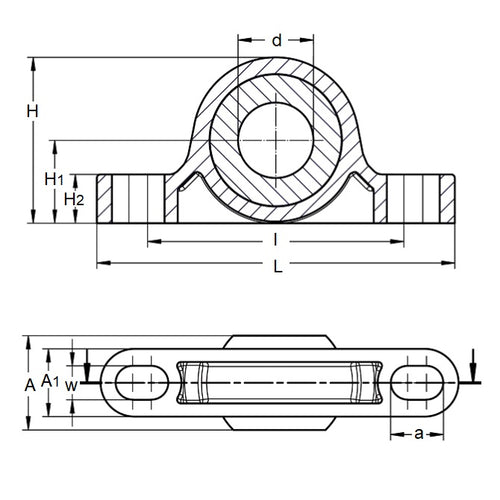

    BB-095-L280DiagramBB-095-L280Image
