FL-05-W300 - Datasheet

Iglidur

Category Information

Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - W300

W300 Self Aligning Flanged 2 Bolt Housing Assembly. With integral self aligning plain bearing.

  • Housing: Igumid G.
  • Ball: Highly wear resistant Iglidur W300.

Product Data

  • Nominal Shaft Size : 5.00 mm + 0.020 / + 0.068
    (Equiv. 0.197 in.)
  • Overall Length (A) 24.000 mm
    (Equiv. 0.945 in.)
  • Overall Height (E) 8.500 mm
  • Min to Max Shaft Dia. 33 mm
  • Base Height (D) 4.500 mm
  • Bolt Hole Centres (L) 16.000 mm
  • Material Plastic
Country of Origin: DE

Product Compliance and Data

Additional Resources

    Cross References

    • Igus EFOM-05
    • EFOM05
    View full details

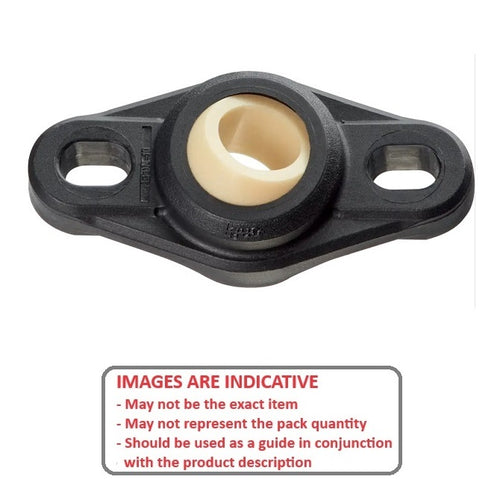

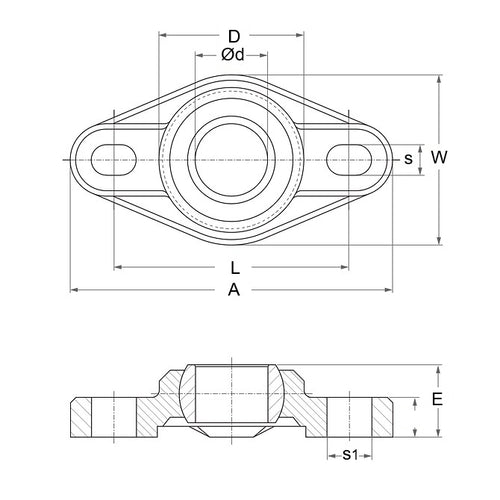

    FL-05-W300DiagramFL-05-W300Image
