FL-17-W300 - Datasheet
Iglidur
Category Information

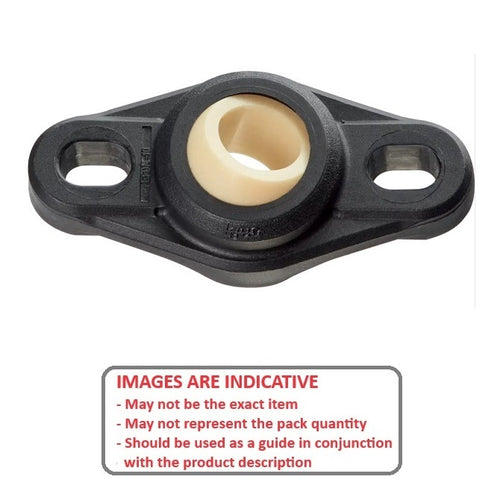

Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - W300W300 Self Aligning Flanged 2 Bolt Housing Assembly. With integral self aligning plain bearing.
- Housing: Igumid G.
- Ball: Highly wear resistant Iglidur W300.
Product Data
- Nominal Shaft Size
:
17.00
mm
+ 0.032 / + 0.102

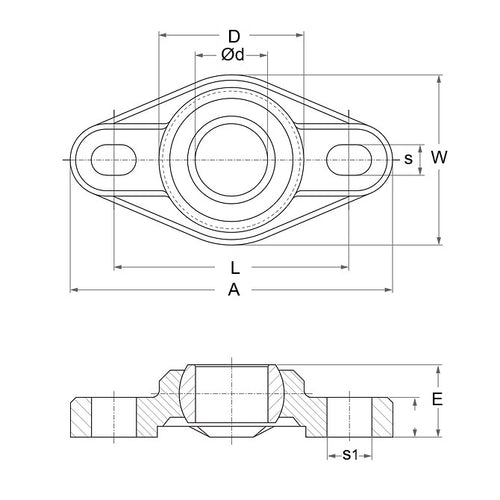

(Equiv. 0.669 in.) - Overall Length (A)
55.000
mm
(Equiv. 2.165 in.) - Overall Height (E) 18.000 mm
- Min to Max Shaft Dia. 20 mm
- Base Height (D) 10.000 mm
- Bolt Hole Centres (L) 41.000 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- Igus EFOM-17
- EFOM17
