G040B-020-M2-200-120-C-P - Datasheet
MBA
Category Information

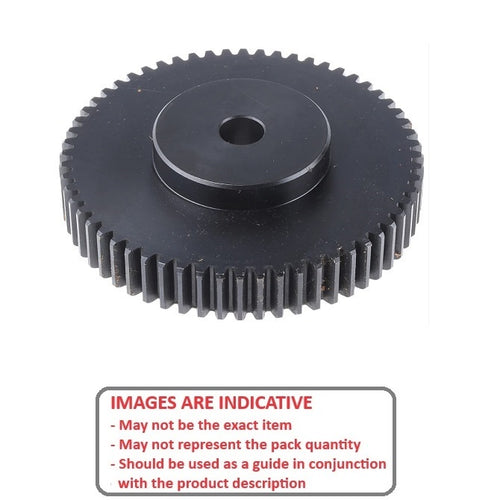

Gears - Spur - Hubbed - Module 2 - SteelSteel Module 2 Hubbed Spur Gears. PCD in mm = No. of Teeth x 2. 20 Degree Pressure Angle
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 2mm per tooth
- Module 1. Approximately 6.28mm between the teeth.
Product Data

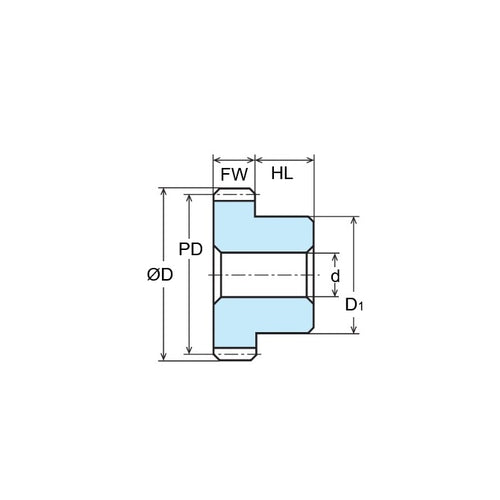

- Number of Teeth : 20
- Pitch Circle Diameter (PD) 40.00 mm
- Bore (d) 12.000 mm
- Outside Diameter (OD) 44.000 mm
- Face Width (FW) 20.000 mm
- Type Hubbed
- Locking Method None
- Quality ISO 8 - ( AGMA 9 )
- Material Carbon Steel
