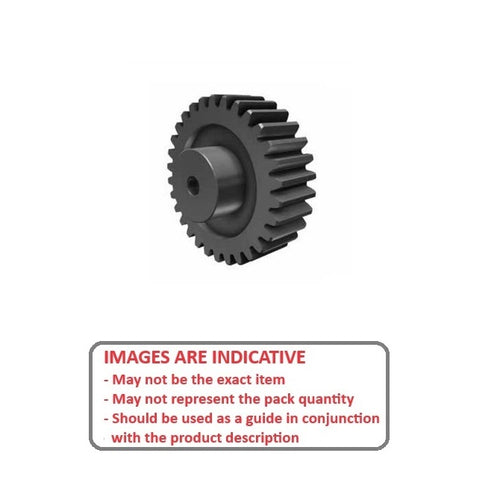

WG1R24-020-06HP0475-NYB - Datasheet

ENQUIRE

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

• : 24DP
• 20
• 4 Deg 46 Min with 14.5 Deg Pressure Angle
• Right Hand
• 4.750
• 14.288
• 21.16
• 6.350
• Finished
• 15.87
• No Set Screw
• Material Nylon - Mineral Filled Black

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• WG1R24102006HP0475NYB
