S687J-D55-ZZS-T9H - Datasheet

MBA

Category Information

Bearings - Dental Applications

Dental Applications Bearings. This listing shows the basic features of various bearings for dental applications.

  • Bearings used in high-speed and low-speed dental handpieces play a crucial role in the performance and reliability of these dental tools.
  • The purpose of bearings in dental handpieces varies depending on the speed requirements and operational characteristics of the handpiece.
  • Key features of dental equipment bearings are high precision allowing for high speed rotaion, low friction and quiet operation. An expanded range may be available on special order. Please enquire.
  • Please contact us for a dental application list.

Product Data

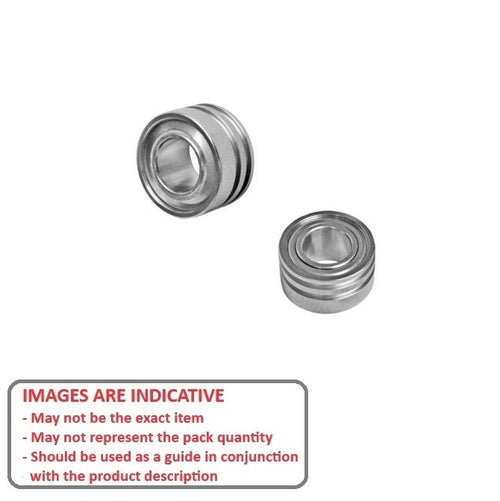

Laboratory Handpiece Special 7x14x7.5, Stainless Steel, Polyamide Retainer - Two grooves in OD

  • ID (d) : 7.000 mm
  • O.D. (D) 14.000 mm
  • Width (B) 7.500 mm
  • Precision Grade Abec 7
  • Closure Type ZZS
  • Bearing Type Radial
  • Additional Information 14.000
  • Material Stainless Steel or Polyamide Cage
  • Lubrication Type Oil
  • Lubrication Name Undisclosed
  • Basic Part 687JD55
  • Limiting Speed 72800
  • Cage Type Polyamide
  • Static Load Rating KGf 26
  • Dynamic Load Rating KGf 60
  • Radii 0.15 mm
  • Inner Shoulder (UI) 9.00mm
  • Outer Shoulder (UO) 12.00 mm
  • Number of Balls Undefined
  • Clearance
  • Precision Grade Abec 7
  • Closure Type ZZS
  • Max Temperature 120 Deg. C
Country of Origin: DE
